Elite Cashier / Corner Unit

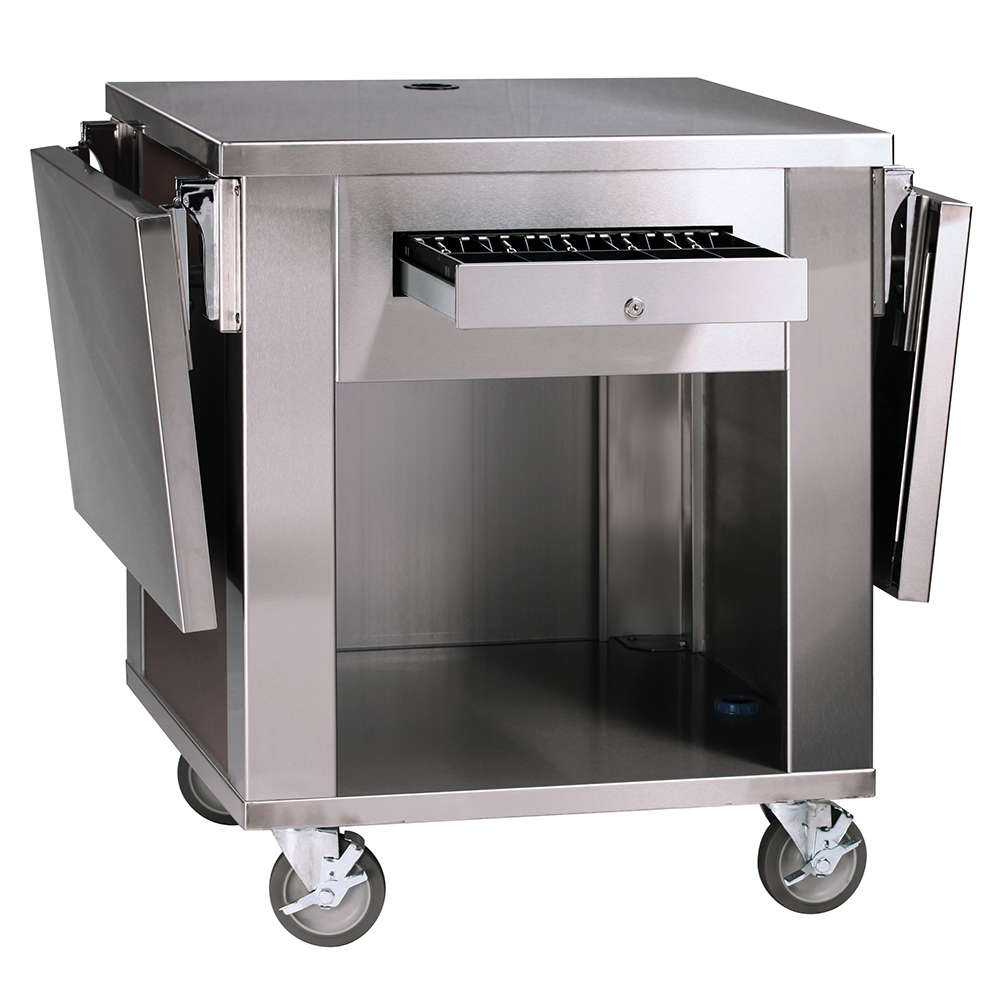

2-CD shown with optional dual SRTS and Footrest

2CD-2SRTS-TFR

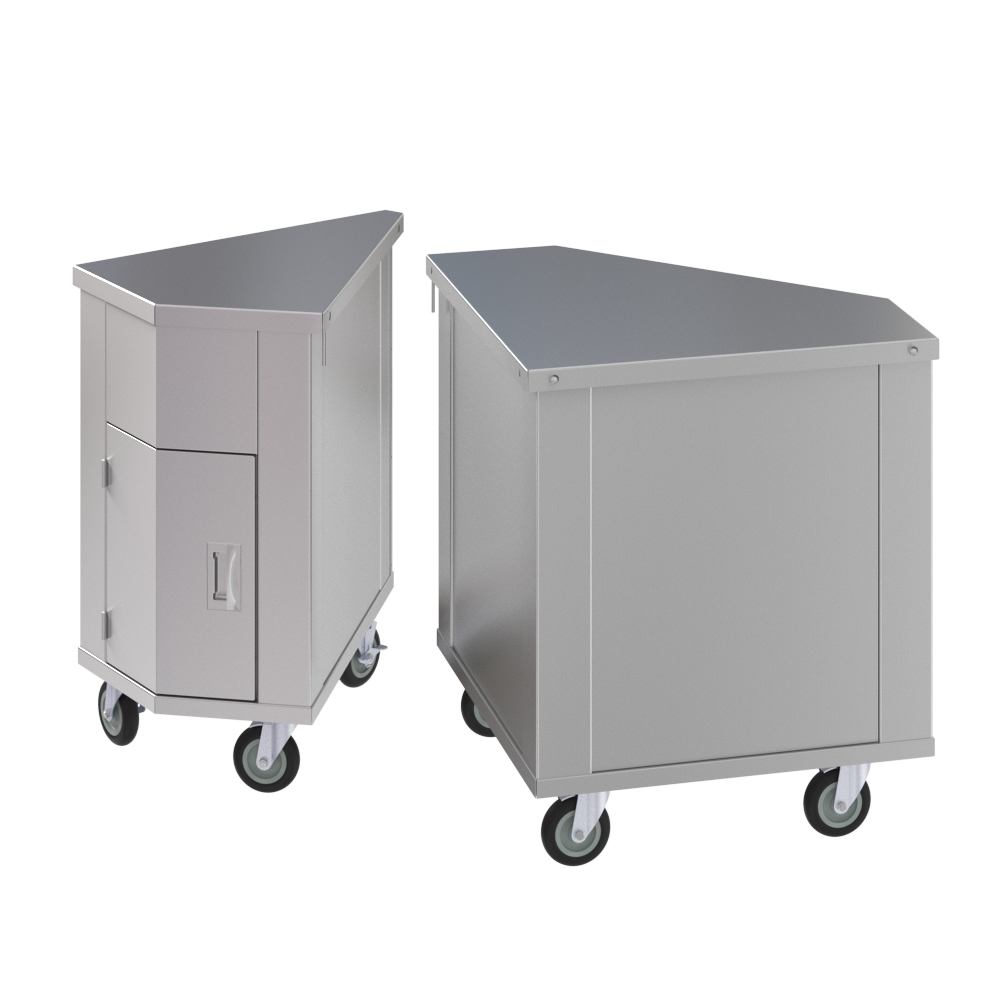

2-MCU corner units

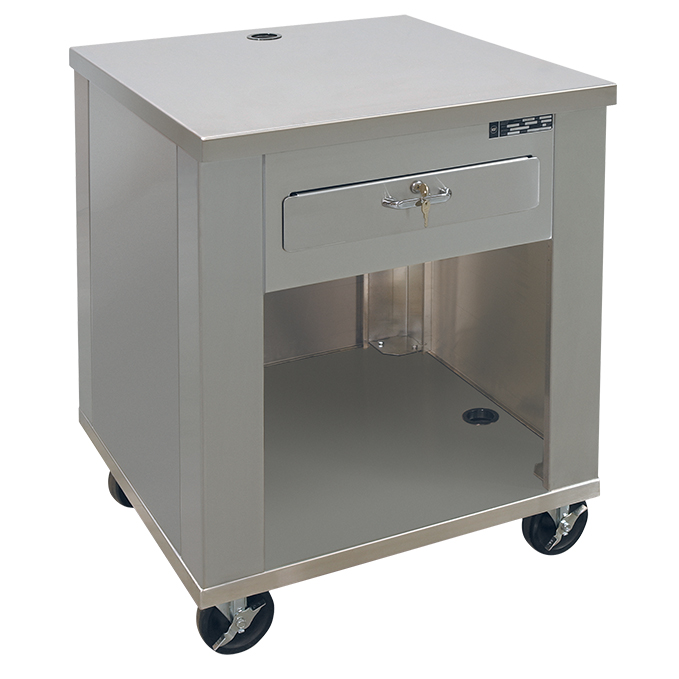

2-CD with locking drawer
2-CD with optional shelves
Prev Next
Model # Description Length Width Height Ship Wt.(lbs)
2-CD (503-1) Cashier with Locking Drawer 30" 28" 36" 165
2-CR Corner Unit 28" 28" 36" 160
2-MCU Mitered Corner Unit 28" 36" 140

The Elite 500 Cashier Stand is a comfortable workstation. Ideal for use in cafeteria/buffet lines. This Elite 500 unit is compatible and will interlock with other Elite 500 units or the cashier stand can be operated as a freestanding separate unit.

STANDARD FEATURES

  • 14-gauge stainless steel top with 1-1/2” turndown on all sides
  • Top secured by four recessed bolts for easy access
  • 14-gauge stainless steel legs
  • 18-gauge stainless steel bottom shelf
  • 20-gauge stainless steel end and front panels are attached to legs
  • Standard unit comes with a solid bottom
  • Hole in top with bushing for cash register cord (standard)
  • Locking drawer (standard)
  • 5” diameter swivel plate casters, 2 with brakes
  • Interlocking mechanism is provided to interlock with other Elite units
  • The utility drawer is centered in the panel on the open side and mounted on roller bearing slides

Consult factory for unit specification on a corner or mitered unit.

*30" height is available on Petite Elite units

COMMON OPTIONS

  • Tray slides
  • Tubular foot rest
  • Duplex outlet
  • See reverse side for additional options

WARRANTY

One year parts and labor. Warranty is detailed on inside front cover of the price list.

Read California Proposition 65 Warning

AVAILABLE OPTIONS

Model # Description
3BTS 3-Bar Tray Slide 12.75" wide w/hinged brackets
DOUT Duplex Outlet (120V, 15 AMP)
FRMA Formica laminate finish
PPC Pizzazz Powder Coating
SKR Skirting
SRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
SSL Legs in lieu of casters
TFR Tubular foot rest
