Spec
A-3
A-3
Load

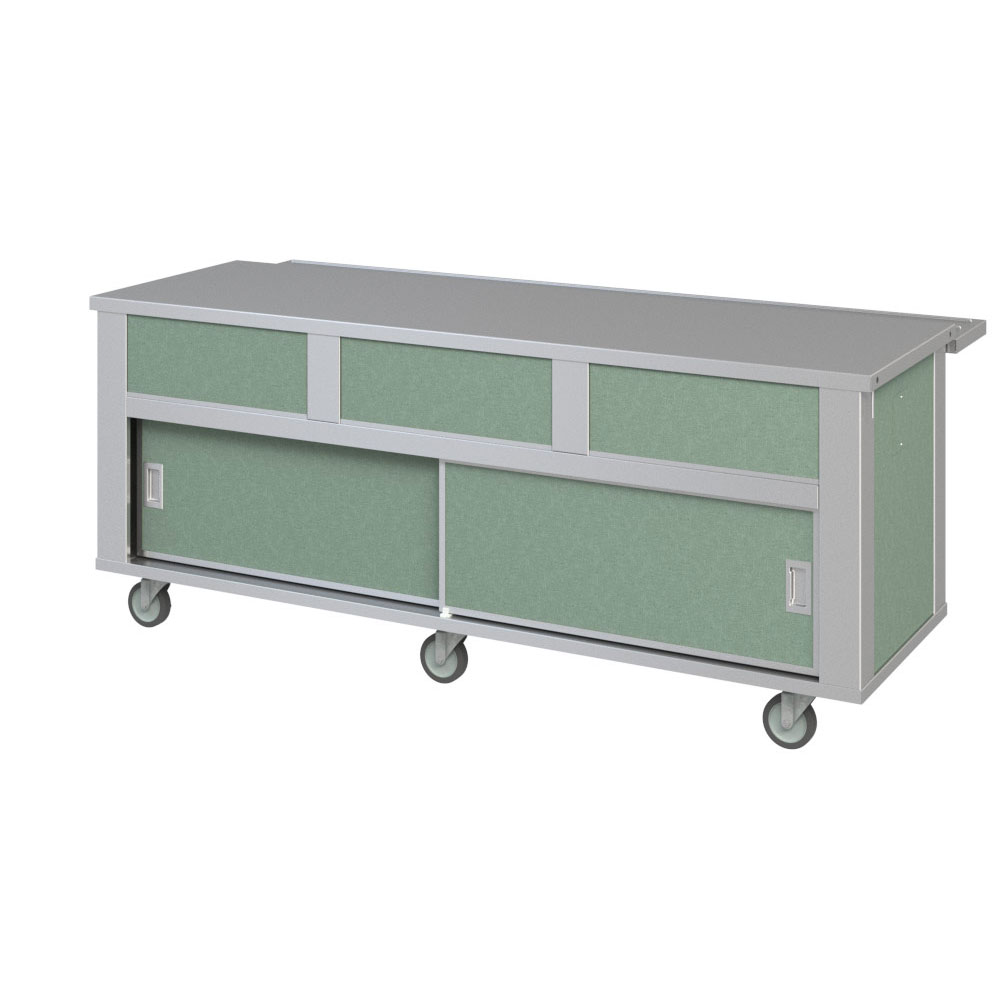

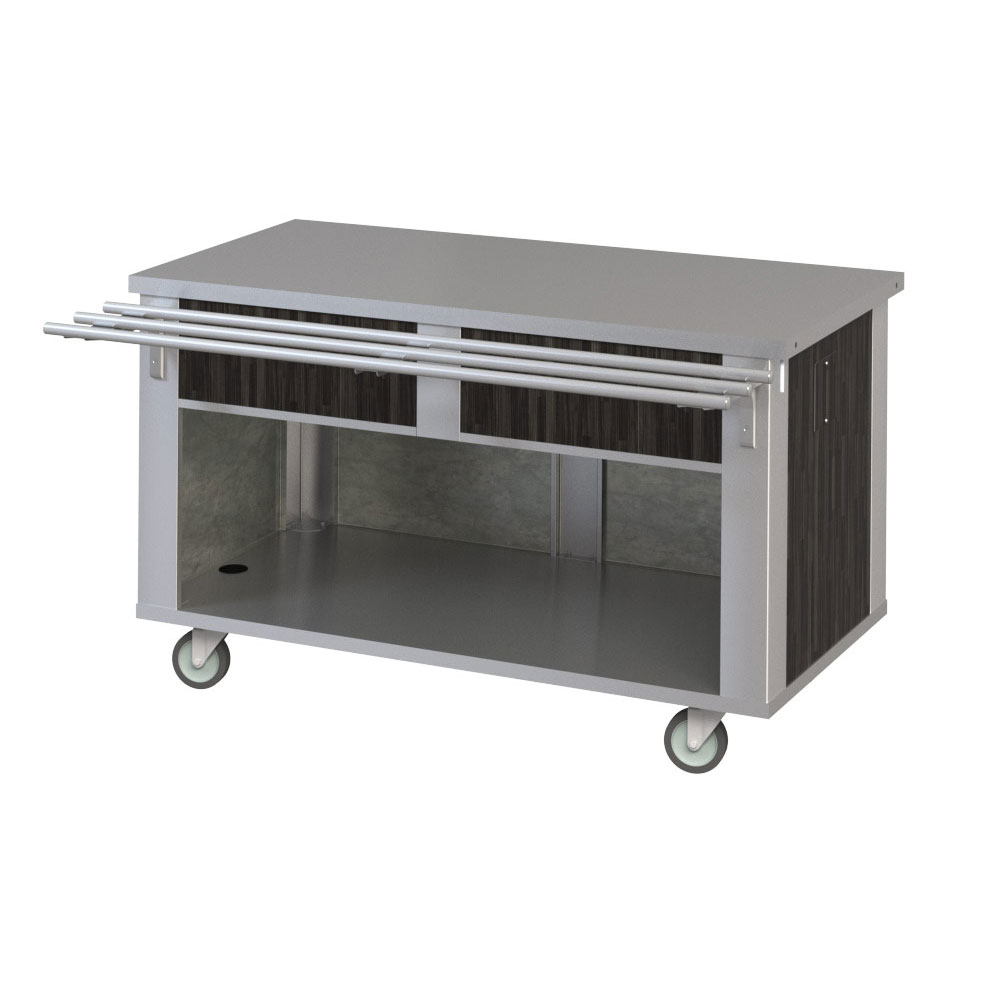

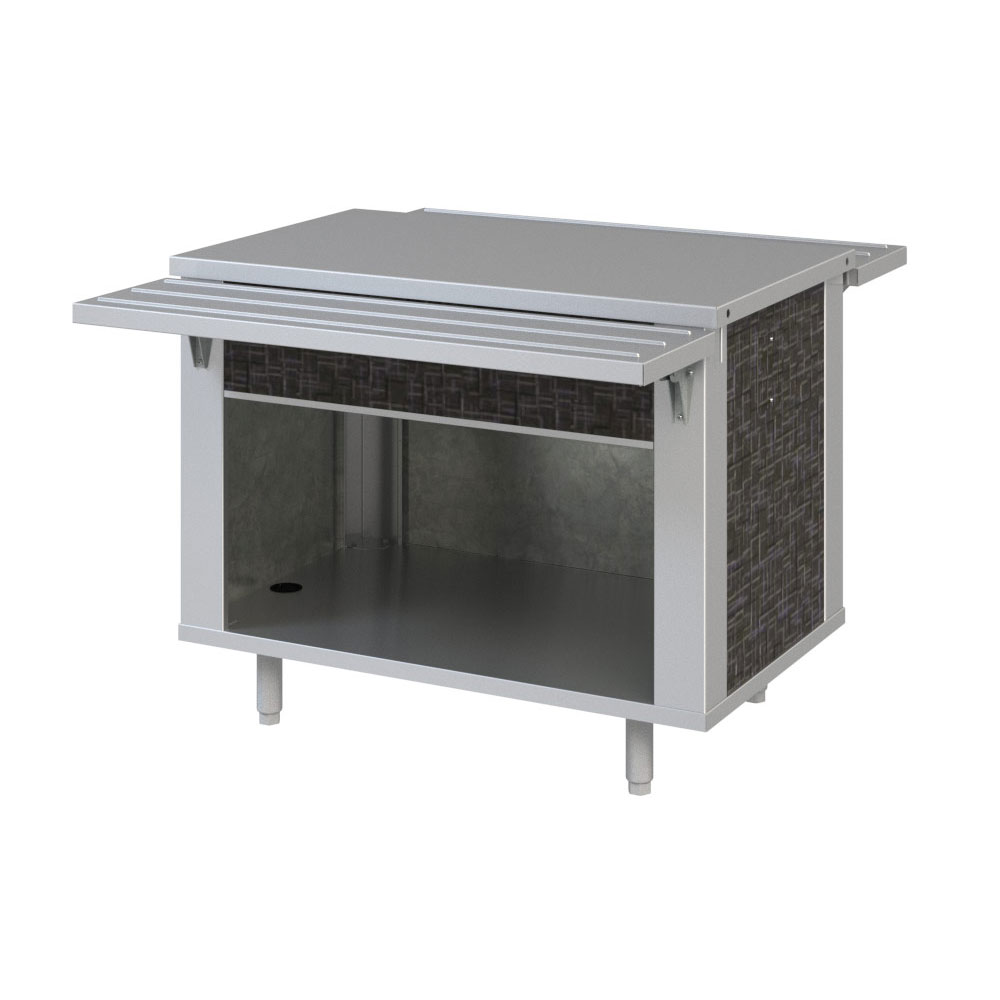

Elite Solid Top Unit
| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| 2-ST (500) | 32" | 32" | 28" | 36" | 225 |
| 3-ST (500-1) | 46" | 46" | 28" | 36" | 265 |
| 4-ST (500-2) | 60" | 60" | 28" | 36" | 302 |
| 5-ST (500-3) | 74" | 74" | 28" | 36" | 345 |
| 6-ST (500-4) | 88" | 88" | 28" | 36" | 385 |
| 2-STSL | 50" | 50" | 19" | 36" | 225 |
| 3-STSL | 72" | 72" | 19" | 36" | 265 |
The Elite 500 Solid Top’s versatile modular design allows you to custom design either a cafeteria or a buffet line-up. Elite 500 units are compatible and will interlock with other Elite 500 units. This allows the units to be disconnected for cleaning under the serving line. With Elite 500 you choose only the options and accessories that you want and need.
STANDARD FEATURES
- 14-gauge stainless steel top with 1-1/2” turn down on all sides
- Top secured by four recessed bolts
- 14-gauge stainless steel legs fastened to 18-gauge stainless steel bottom shelf
- 20-gauge stainless steel end and front panels are attached to legs
- Open control side for additional storage capacity
- 5” diameter swivel plate casters, 2 with brakes
- Interlocking mechanism is provided to interlock with other Elite 500 units
COMMON OPTIONS
- Tray slides
- Protector guards
- Hinged or sliding doors
- See reverse side for additional options.
WARRANTY
One year parts and labor. Warranty is detailed on inside front cover of the price list.
AVAILABLE OPTIONS
| Model # | Description |
|---|---|
| 3BTS | 3-Bar Tray Slide 12.75" wide w/hinged brackets |
| BDD | Buffet double display two-sided protector guard |
| BPG | Buffet double side protector guard (no heat or lights) |
| BPG1 | Buffet single side protector guard (no heat or lights) |
| BPG1C | Buffet Style Classic Single Sided protector guard |
| BPG1FL | Buffet single side protector guard with fluorescent lights |
| BPG1IL | Buffet single side protector guard with incandescent lights |
| BPGC | Classic protector guards |
| BPGFL | Buffet double side protector guard with fluorescent lights |
| BPGH | Buffet double side protector guard with heat strip |
| BPGIL | Buffet double side protector guard with incandescent lights |
| CDD | Cafeteria double display (no heat or lights) |
| CDDC | Cafeteria Style Classic double protector guards |
| CDDL | Cafeteria double display with fluorescent lights |
| CPG | Cafeteria protector guard (no heat or lights) |
| CPGC | Cafeteria Style Classic Single protector guard |
| CPGFL | Cafeteria protector guard with fluorescent lights |
| CPGHL | Cafeteria protector guard with heat and lights |
| CPGL | Cafeteria protector guard with incandescent lights |
| CUT | Cut out for drop in dispensers |
| DOUT | Duplex Outlet (120V, 15 AMP) |
| FRMA | Formica Laminate Without Doors |
| INT | Intermediate shelf |
| MBS | 18" maple end bread shelf; left, right - flush with top |
| MCB | Cutting Board Maple - 8" wide w/hinged brackets |
| PPC | Pizzazz Powder Coating |
| SBS | 18" stainless steel end bread shelf; left, right - flush with top |
| SCB | Cutting Board Stainless - 8" wide w/hinged brackets |
| SCPGC | Cafeteria Style Classic Single protector guards |
| SKR | Skirting |
| SRTS | Solid 3-ribbed tray slide, 16-gauge stainless steel |
| SSL | Legs in lieu of casters |
| UCR-1 | Refrigerated storage base with doors |
| UCR-2 | Refrigerated storage base - Units 74" and longer |
