Reflections Beverage Counter Unit

Enclosed Base

R1-BEV1

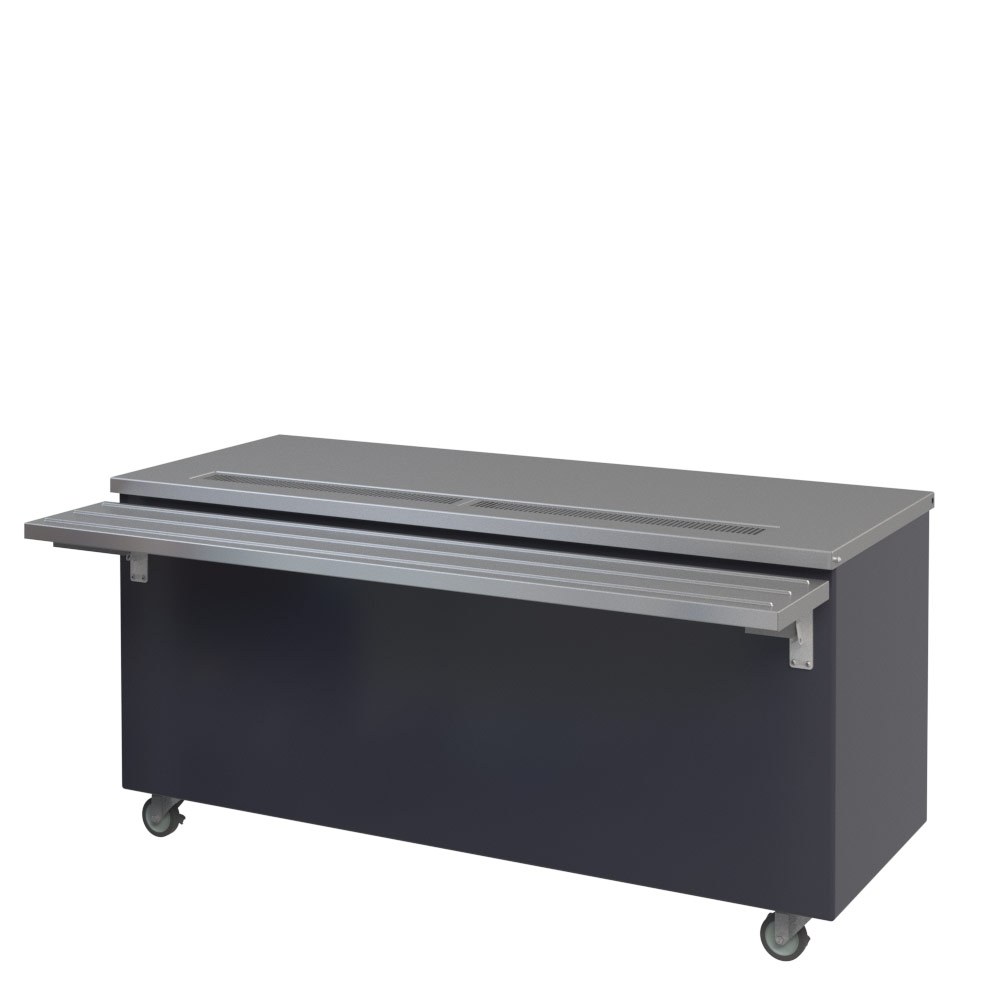

R5-BEV-1-RSRTS

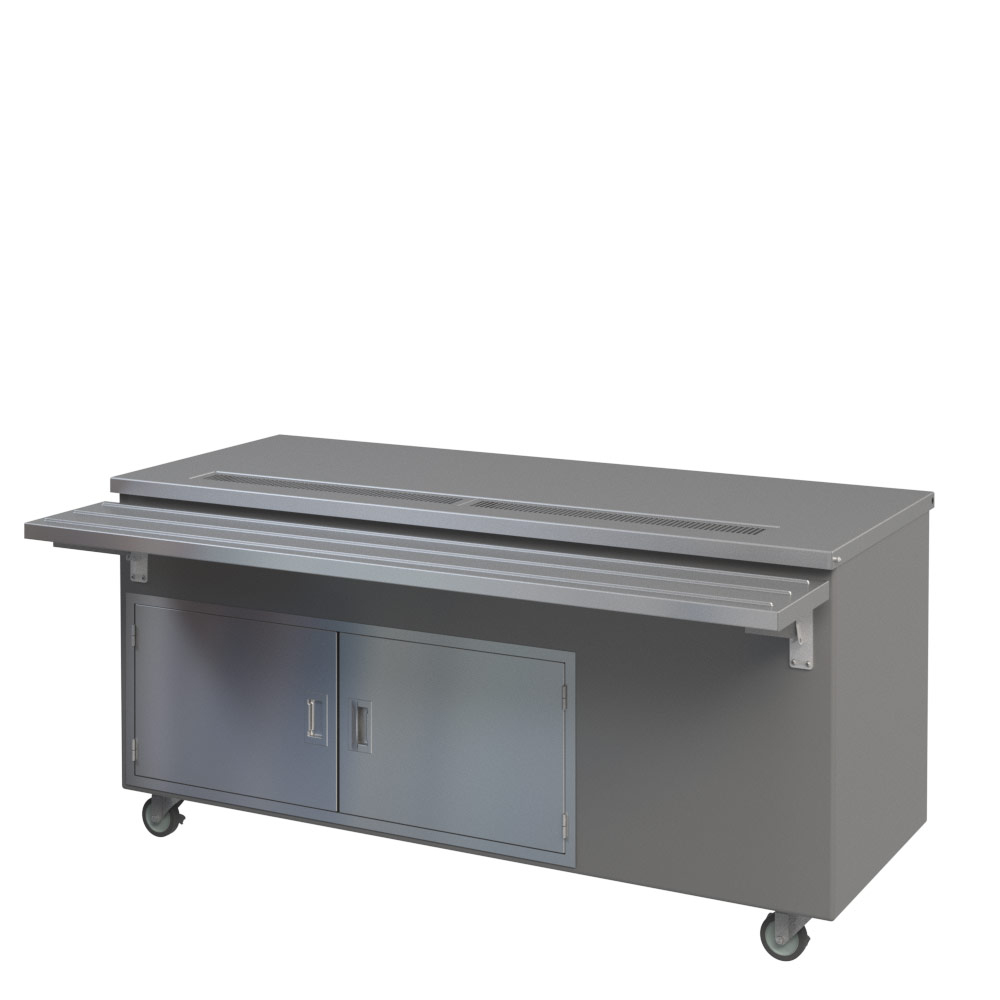

R6-BEV1 shown with optional RSRTS, ROU and RHD
Prev Next
Model # Description Length Width Height Ship Wt.(lbs)
R1-BEV1 Single Trough 28” 30” 36” 165
R2-BEV1 Single Trough 36” 30” 36” 175
R3-BEV1 Single Trough 50” 30” 36” 194
R4-BEV1 Single Trough 60” 30” 36” 235
R5-BEV1 Single Trough 74” 30” 36” 265
R6-BEV1 Single Trough 96” 30” 36” 308
R1-BEV2 Double Trough 28” 30” 36” 165
R2-BEV2 Double Trough 36” 30” 36” 175
R3-BEV2 Double Trough 50” 30” 36” 194
R4-BEV2 Double Trough 60” 30” 36” 235
R5-BEV2 Double Trough 74” 30” 36” 265
R6-BEV2 Double Trough 96” 30” 36” 308

Designed to keep your serving area clean and functional, these Piper Beverage Counters are sure to complete your line-up. The standard full length drains will keep hazardous spills from your floors. Units are a full 30” deep to accommodate nearly all coffee makers.

The versatile modular design allows you to design a cafeteria or buffet unit to fit your line-up. All Reflections units are compatible and will interlock with other Reflections units.


STANDARD FEATURES

  • Seamless, molded FRP body with smooth exterior and rounded corners
  • 14-gauge stainless steel top with fully welded square turndowns on all sides
  • Enclosed base
  • Under bracing for heavier loads
  • 4-1/2" wide stainless steel removable grate for easy access
  • 3/4" FPT ball valve provided under unit
  • 4" diameter swivel plate casters with brakes
  • Interlocking mechanism is provided to interlock with other Reflections units

ELECTRICAL

  • Optional outlet locations must be specified

STANDARD COLORS

  • Wine Red (RAL 3005)
  • Signal Red (RAL 3001)
  • Yellow (RAL 1021)
  • Light Blue (RAL 5012)
  • Gentiane Blue (RAL 5010)
  • Water Blue (RAL 5021)
  • Moss Green (RAL 6005)
  • Squirrel Gray (RAL 7000)
  • Black
  • White
  • Custom colors available
  • Optional Graphics Packages available

COMMON OPTIONS

  • Tray slides
  • Cutting boards
  • Under storage, hinged doors
  • See reverse side for additional options.

WARRANTY

  • One year parts and labor. Warranty is detailed on inside front cover of the price list.
Read California Proposition 65 Warning

AVAILABLE OPTIONS

Model # Description
R3BTS 3-bar tray slide
RBL Stainless steel 6" adjustable bullet feet
RDOUT Duplex Outlet (120V, 15 AMP)
RHD Under storage hinged doors
RMCB 8" maple cutting board
ROU Open under storage with shelf
RSCB 8" stainless steel cutting board
RSES End shelf - drop type
RSFTS Solid flat tray slide, 16-gauge stainless steel
RSRTS Solid 3-ribbed tray slide, 16-gauge stainless steel
