Spec
U-25
Load
Dowload Spec Sheet

Drainboards

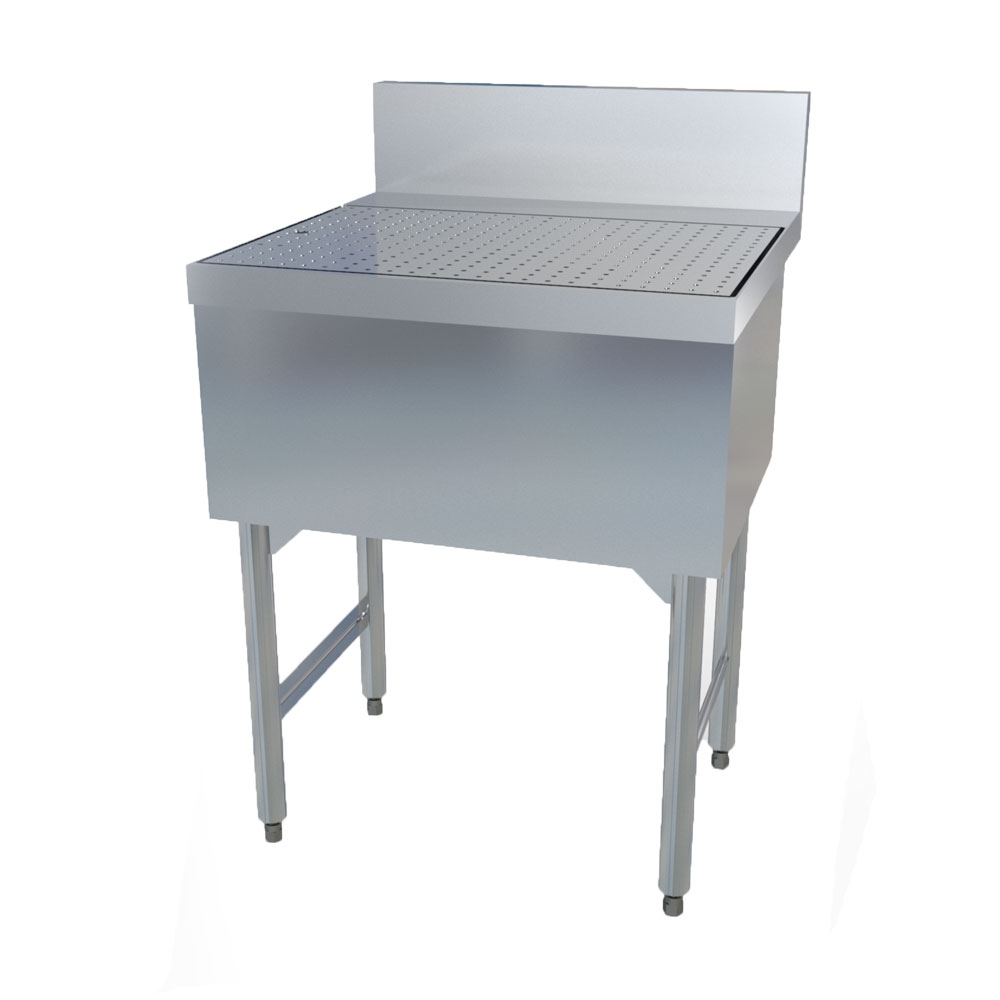

CLW24
Model # Description Length Width Height Ship Wt.(lbs)
SDW12 19" 12" 36"
SDW18 19" 18" 36"
SDW24 19" 24" 36"
SDW36 19" 36" 36"
CLW12 24" 12" 36"
CLW18 24" 18" 36"
CLW24 24" 24" 36"
CLW36 24" 36" 36"

STANDARD FEATURES

  • 304 Stainless Steel Welded and Polished Top Assembly, Front Apron and Ends
  • SD Models Available in the Following Standard Lengths: 12”, 18”, 24”, and 36”; Contact Factory for Custom Lengths
  • Standard Stainless Steel Corrugated Drainboard Top
  • SD Legs: Galvanized Steel Tube and Welded Cross-Brace Construction, with Corrosion-Resistant Hammertone Paint and High-Impact Plastic Adjustable Feet
  • CL Models Available in the Following Standard Lengths: 12”, 18”, 24”, and 36”; Contact Factory for Custom Lengths
  • Removable Perforated Pan with Drain
  • CL Legs: Stainless Steel Tube Legs and Welded Cross-Braced Construction, High Impact Plastic Adjustable Feet
  • Factory-Installed Stainless Steel Drain with 1 1/2” Standard Male Pipe Thread
  • Constructed to Meet NSF Specifications
Read California Proposition 65 Warning
