| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| R2-FT | 36” Length | 36” | 30” | 36” | 380 |
| R3-FT | 50” Length | 50” | 30” | 36” | 460 |
| R4-FT | 60” Length | 60” | 30” | 36” | 550 |
| R5-FT | 74” Length | 74” | 30” | 36” | 620 |
| R6-FT | 96” Length | 96” | 30” | 36” | 690 |
Frost Top units are perfect for dessert and salad merchandising such as parfaits, pastry, jello and a variety of salads. The versatile modular design allows you either a cafeteria or a buffet unit to fit your line-up. Reflections units are compatible and will interlock with other Reflections units.
STANDARD FEATURES
- Seamless, molded FRP body with smooth exterior and rounded corners
- 14-gauge stainless steel top with fully welded square turndowns on all sides
- Enclosed base

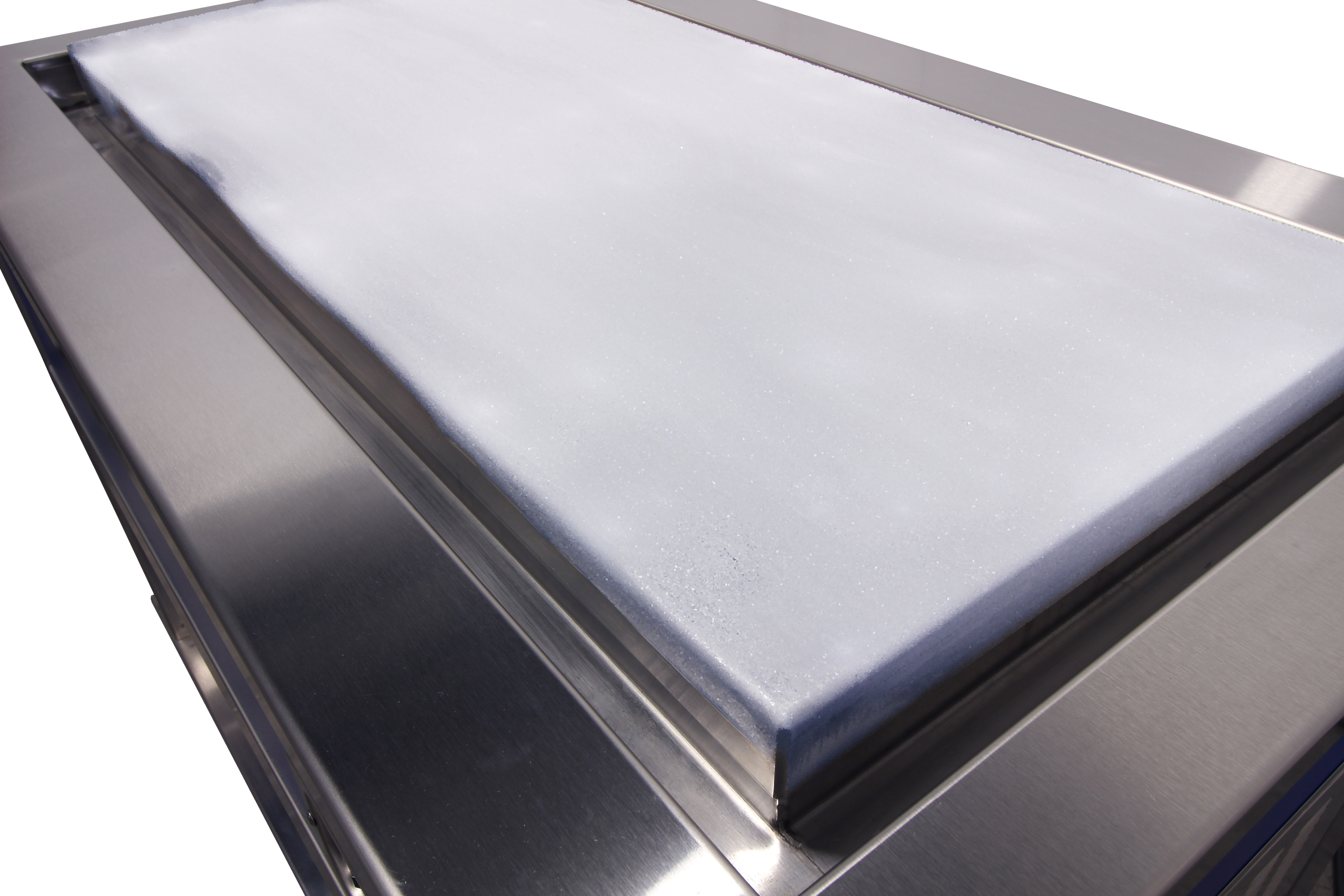

- Mechanically cooled and thermostatically controlled top of 14-gauge stainless steel
- The welded, watertight well has a concealed continuous refrigeration coil bonded to the underside and is fully insulated
- Cross-flow ventilation has two stainless steel exterior frames with removable stainless steel louvers for easy access
- Fully hermatic condensing unit shall be connected to the frost top and controls, sized to the evaporator load
- Condensing unit on slide-out rails for ease of service
- Full perimeter drain trough has a 3/4" FPT drain valve below the base
- 4” diameter swivel plate casters, 2 with brakes
- Interlocking mechanism is provided to interlock with other Reflections units
ELECTRICAL
- All units available in 120 volt, single-phase standard
- Six foot electrical cord and plug
STANDARD COLORS
- Wine Red (RAL 3005)
- Signal Red (RAL 3001)
- Yellow (RAL 1021)
- Light Blue (RAL 5012)
- Gentiane Blue (RAL 5010)
- Water Blue (RAL 5021)
- Moss Green (RAL 6005)
- Squirrel Gray (RAL 7000)
- Black
- White
- Custom colors available
- Optional Graphics Packages available
COMMON OPTIONS
- Tray slides, cutting boards
- Protector guards
- Under storage, hinged doors
- Common drains and manifolds
- See reverse side for additional options
WARRANTY
- One year parts and labor. Warranty is detailed on inside front cover of the price list.
AVAILABLE OPTIONS
| Model # | Description |
|---|---|
| R3BTS | 3-bar tray slide |
| RBDD | Two tier buffet protector guard |
| RBDDL | Two tier buffet protector guard with fluorescent lights |
| RBEG | Buffet end guards (pr) |
| RBHL | Heat lamps, bullet-type (buffet only) |
| RBKR | Common circuit breaker for well heaters only |
| RBL | Stainless steel 6" adjustable bullet feet |
| RBPG | Buffet style protector guard |
| RBPG1 | Single sided buffet style protector guard |
| RBPG1C | Classic single sided tubular glass buffet guard |
| RBPG1FL | Single sided buffet style protector guard with fluorescent lights |
| RBPG1IL | Single sided buffet style protector guard with incandescent lights |
| RBPGC | Classic tubular glass buffet guard |
| RBPGFL | Buffet style protector guard with fluorescent lights |
| RBPGH | Buffet style protector guard with heat strips |
| RBPGIL | Buffet style protector guard with incandescent lights |
| RCDD | Two tier cafeteria protector guard |
| RCDDC | Classic two tier tubular glass cafeteria guard |
| RCDDL | Two tier cafeteria protector guard with fluorescent lights |
| RCEG | Cafeteria end guards (pr) |
| RCPG | Cafeteria style protector guard |
| RCPGC | Classic tubular glass cafeteria guard |
| RCPGFL | Cafeteria style protector guard with fluorescent lights |
| RCPGH | Cafeteria style protector guard with heat strips |
| RCPGHL | Cafeteria style protector guard with heat and light strips |
| RCPGL | Cafeteria style protector guard with incandescent lights |
| RDOUT | Duplex Outlet (120V, 15 AMP) |
| RDRN | Drain and manifold with shut-off valve |
| RHD | Under storage hinged doors |
| RHU | Heated storage base with doors and pan slides (convertible racks hold 10-2" deep 12" x 20" pans or 10 - 18" x 26" bun pans) |
| RMCB | 8" maple cutting board |
| ROHS | Overhead shelf |
| ROU | Open under storage with shelf |
| RSCB | 8" stainless steel cutting board |
| RSCPGC | Cafeteria single tubular vertical glass guard |
| RSES | End shelf - drop type |
| RSFTS | Solid flat tray slide, 16-gauge stainless steel |
| RSRTS | Solid 3-ribbed tray slide, 16-gauge stainless steel |
