Reflections Hot Food Unit
R5HF-RHU-RSRTS-RBPG1
R5HF-ROU-RSRTS-RCPGC-RSCB

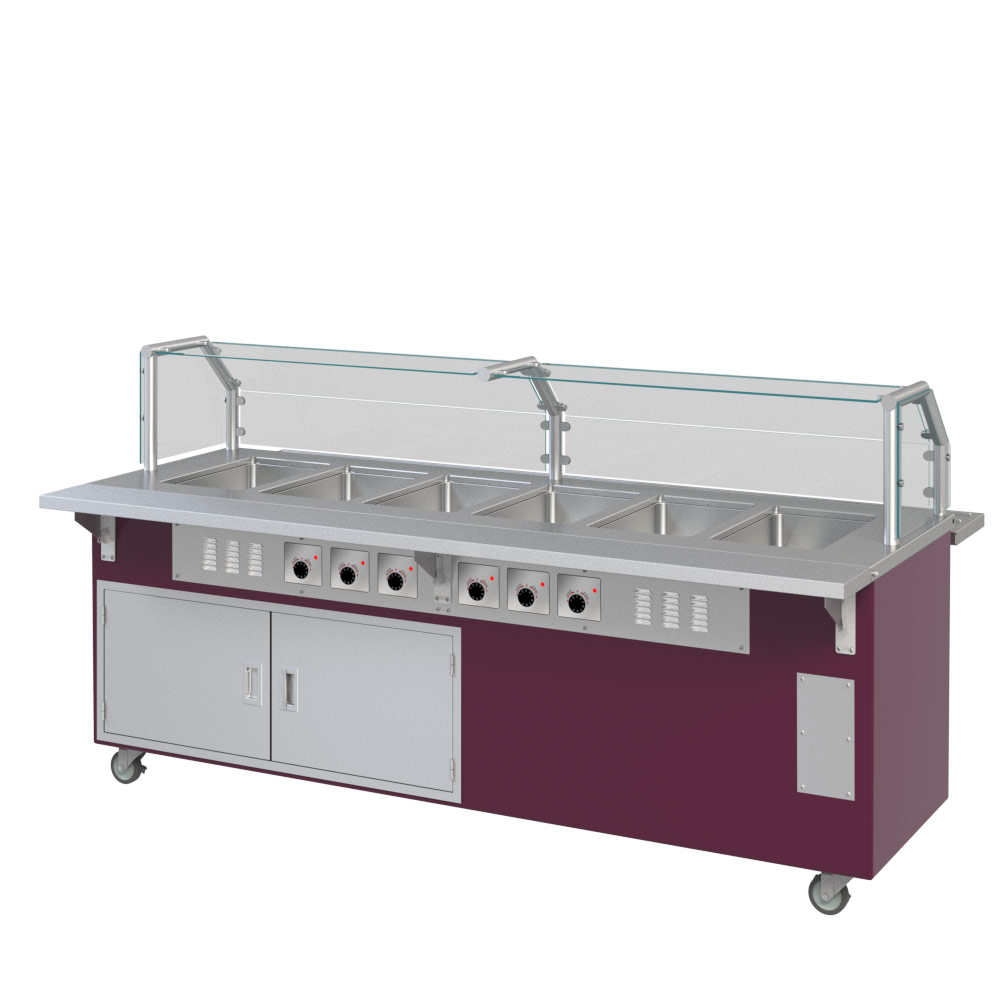

R6HF-RSCB-RSRTS-RCPGC

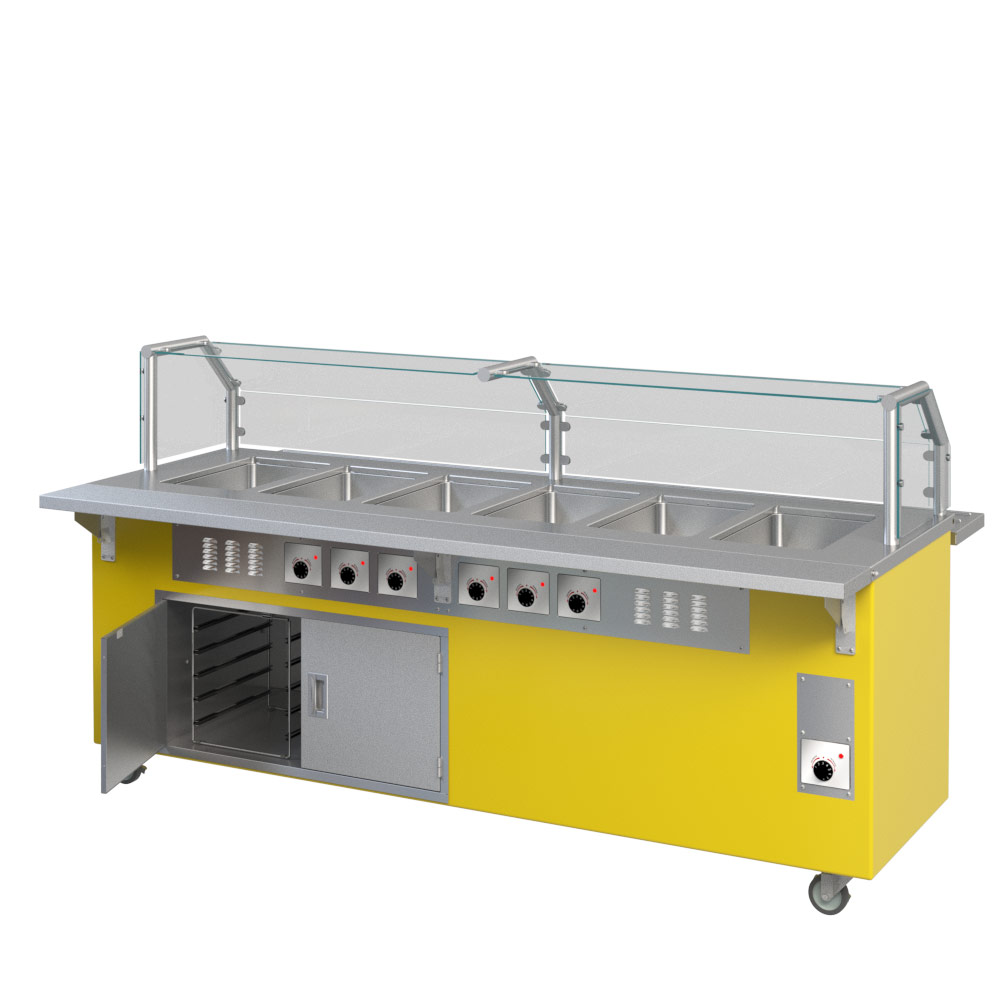

R6HF-RSCB-RSRTS-RCPGC-RHU
| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| R2-HF | 2-Well | 36" | 30" | 36" | 245 |
| R3-HF | 3-Well | 50" | 30" | 36" | 270 |
| R4-HF | 4-Well | 60" | 30" | 36" | 295 |
| R5-HF | 5-Well | 74" | 30" | 36" | 335 |
| R6-HF | 6-Well | 96" | 30" | 36" | 360 |
The versatile modular design of the Reflections Hot Food units allows you to customize either a cafeteria or a buffet unit to fit your line-up. These hot food serving units will hold pans up to 6” in depth. Reflections units are compatible and will interlock with other Reflections units.
Only Piper's equipment has the advantage of Food Safe technology and certification. This ensures that your food is kept "out of the DANGER-ZONE." Food spoilage occurs mainly because of rapidly accelerated bacteriological activity within the 40F-140F "DANGER-ZONE."
With Food Safe hot food stays above 140°F longer and cold food is kept below 40°F. Both are key factors in HACCP compliance and the fight against foodborne pathogens.
STANDARD FEATURES
- Seamless, molded FRP body with smooth exterior and rounded corners
- 14-gauge stainless steel top with fully welded square turndowns on all sides
- Enclosed base
- 20-gauge stainless steel bottom-mounted wet/dry food wells with 12” x 20” die-stamped opening and 1/4” raised beaded edge top centered
- 2” insulation on sides and between wells, 1-1/2” on bottom, 1” on the ends and 1/4” fiber frax all around
- 208VAC/1000W or 240VAC/1330W heating element per well wired to a thermostat mounted to the control panel
- Wells can be run wet or dry
- "Works-in-a-drawer” allows element access without removal of unit top
- 4” diameter swivel plate casters with brakes
- Interlocking mechanism is provided to interlock with other Reflections units
- Drain option comes with 3/4" FPT ball valve under unit
ELECTRICAL
- All units available in 208 or 240 volt, single-phase standard
- Seven foot electrical cord and plug
STANDARD COLORS
- Wine Red (RAL 3005)
- Signal Red (RAL 3001)
- Yellow (RAL 1021)
- Light Blue (RAL 5012)
- Gentiane Blue (RAL 5010)
- Water Blue (RAL 5021)
- Moss Green (RAL 6005)
- Squirrel Gray (RAL 7000)
- Black
- White
- Custom colors available
- Optional Graphics Packages available
COMMON OPTIONS
- Tray slides
- Protector guards
- Under storage, hinged doors
- Common drains and manifolds
- See reverse side for additional options
WARRANTY
- One year parts and labor. Warranty is detailed on inside front cover of the price list.
AVAILABLE OPTIONS
| Model # | Description |
|---|---|
| FF | Fill Faucet |
| R3BTS | 3-bar tray slide |
| RBDD | Two tier buffet protector guard |
| RBDDL | Two tier buffet protector guard with fluorescent lights |
| RBEG | Buffet end guards (pr) |
| RBHL | Heat lamps, bullet-type (buffet only) |
| RBKR | Common circuit breaker for well heaters only |
| RBL | Stainless steel 6" adjustable bullet feet |
| RBPG | Buffet style protector guard |
| RBPG1 | Single sided buffet style protector guard |
| RBPG1C | Classic single sided tubular glass buffet guard |
| RBPG1FL | Single sided buffet style protector guard with fluorescent lights |
| RBPG1IL | Single sided buffet style protector guard with incandescent lights |
| RBPGC | Classic tubular glass buffet guard |
| RBPGFL | Buffet style protector guard with fluorescent lights |
| RBPGH | Buffet style protector guard with heat strips |
| RBPGIL | Buffet style protector guard with incandescent lights |
| RCDD | Two tier cafeteria protector guard |
| RCDDC | Classic two tier tubular glass cafeteria guard |
| RCDDL | Two tier cafeteria protector guard with fluorescent lights |
| RCEG | Cafeteria end guards (pr) |
| RCPG | Cafeteria style protector guard |
| RCPGC | Classic tubular glass cafeteria guard |
| RCPGFL | Cafeteria style protector guard with fluorescent lights |
| RCPGH | Cafeteria style protector guard with heat strips |
| RCPGHL | Cafeteria style protector guard with heat and light strips |
| RCPGL | Cafeteria style protector guard with incandescent lights |
| RDOUT | Duplex Outlet (120V, 15 AMP) |
| RDRN | Drain and manifold with shut-off valve |
| RHD | Under storage hinged doors |
| RHU | Heated storage base with doors and pan slides (convertible racks hold 10-2" deep 12" x 20" pans or 10 - 18" x 26" bun pans) |
| RMCB | 8" maple cutting board |
| ROHS | Overhead shelf |
| ROU | Open under storage with shelf |
| RSCB | 8" stainless steel cutting board |
| RSCPGC | Cafeteria single tubular vertical glass guard |
| RSES | End shelf - drop type |
| RSFTS | Solid flat tray slide, 16-gauge stainless steel |
| RSRTS | Solid 3-ribbed tray slide, 16-gauge stainless steel |
