File | Description | Size | |
---|---|---|---|
Rack Mini 2020.pdf | Racks Mini Catalog |
B |
Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
---|---|---|---|---|---|
RIA64-1826-11 | Angle Guide | 20.5" | 64.5" | 65 | |

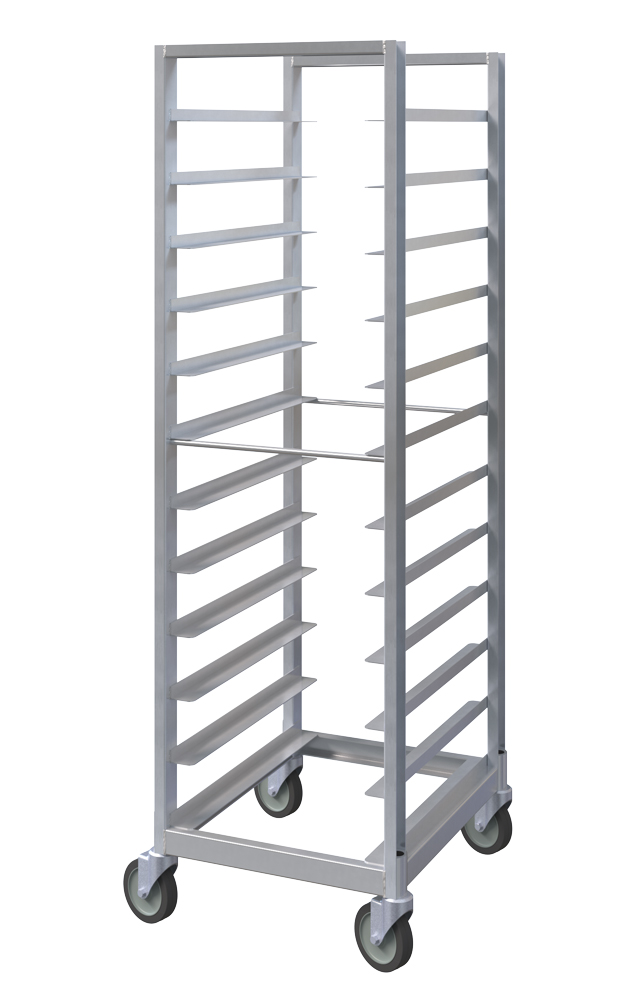

RIA69-1826-12 | Angle Guide | 20.5" | 69.5" | 70 | |

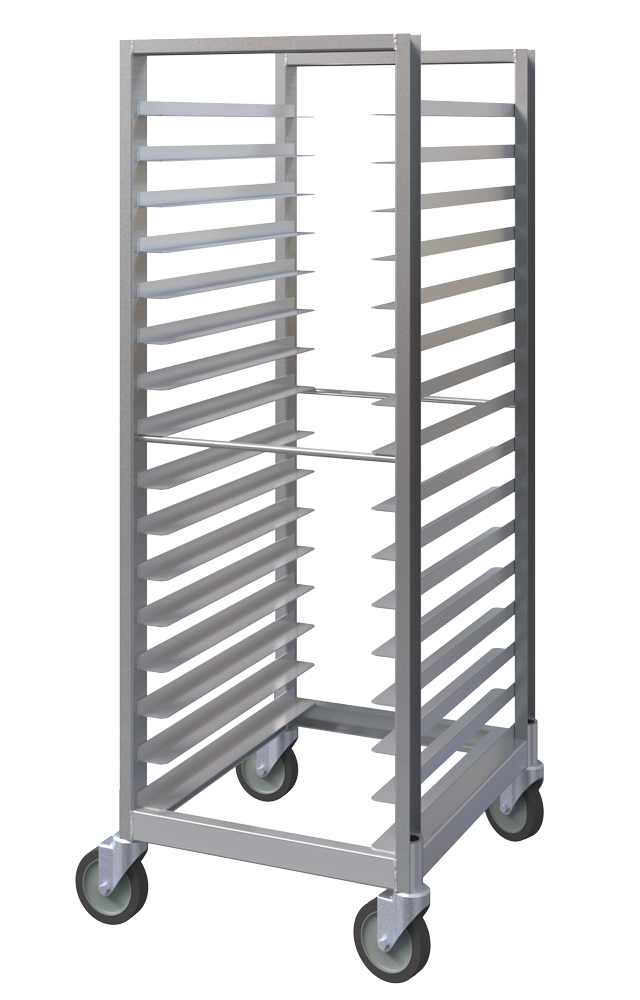

RIA58-1826-16 | Angle Guide | 20.5" | 58.5" | 67 | |
RIA64-1826-18 | Angle Guide | 20.5" | 64.5" | 75 | |

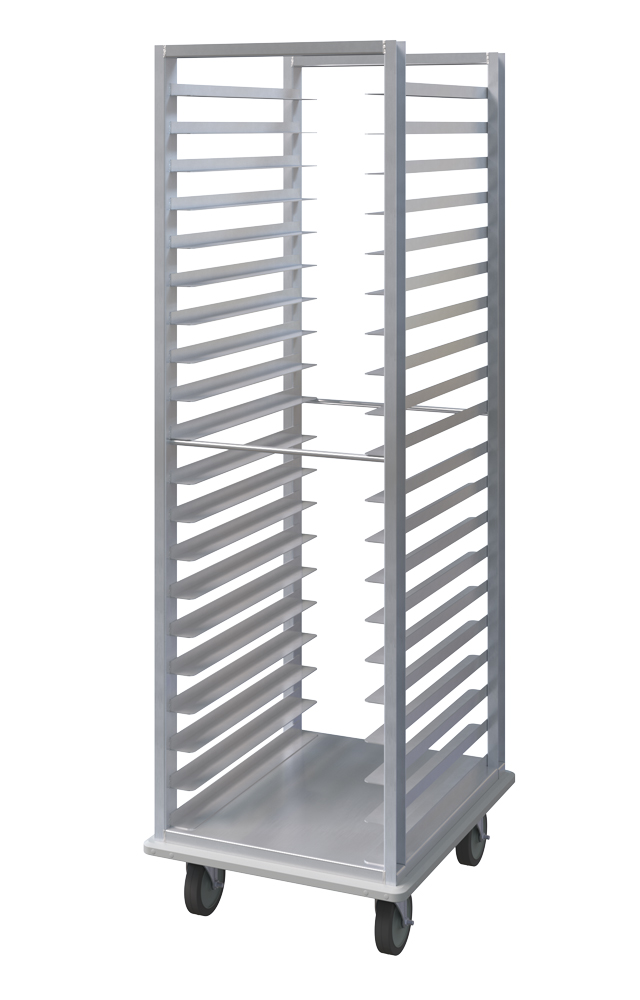

RIA69-1826-20 | Angle Guide | 20.5" | 69.5" | 84 |
Series RIA, aluminium angle guide, open roll-in racks to accommodate 18" x 26" sheet pans, for use in refrigerators and freezers.
The vertical uprights and the top and bottom cross bracing are 2" x 1" x 1/8" thick extruded aluminum channels welded to form a rigid frame. Caster support channels are 1-7/8" x 4" x 1/8" thick extruded aluminum, fully welded to the vertical uprights and bottom cross supports.
The guides are 1" x 1-1/2" x .100 thick extruded aluminum angles welded to the vertical uprights, with all corners chamfered and deburred.
All models have 1/2" diameter aluminum tie rods welded to the front and rear vertical uprights for extra rigidity.
The units are mounted on four 5" diameter, heavy duty, swivel casters.
Capacity: Last digits of model number indicate the quantity of 18" x 26" pans per rack.
NOTE: Before ordering Roll-In rack, be sure to verify the clear opening provided in the refrigerator or freezer being used with the Roll-In rack.
Model # | Description |
---|---|
5x2 | Heavy-duty Casters (set of 4)(requires SB option) |
B | Corner Bumper (adds 2” to overall length and width) Requires SB |
EMB | Personalized Embossment (12 letters per line - price per line) Per Line |
FL | Floor Lock (requires SB option) |
PB | Full Perimeter Bumper (adds 2” to overall length and width) |
PH | Push Handle |
PS | Pan Stop |
SB | Solid Bottom |
V | Vertical Bumpers (adds 1 |
WB | Two locking casters |
Y5 | Polyurethane 5 |
