Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
---|---|---|---|---|---|
CSR-84 | Rear Load | 25.75" | 40.75" | 135 | |
CSR-210 | Rear Load | 25.75" | 86.5" | 200 | |
CSR-308 | Rear Load | 25.75" | 72.75" | 230 | |
CSR-FF-156 | Front Load | 27.25" | 81.0625" | 200 |
Series CSR aluminum can storage racks.
The vertical corner uprights and the top and bottom cross bracing are constructed of all welded 1-1/2" x 1-1/2" x 1/8" thick extruded aluminum angles. The front and rear center uprights are 1-1/2" wide x 1/4" thick aluminum, welded to the top and bottom cross braces.
The guides are 1" x 2" x 1/8" thick, formed aluminum angles with front and rear edges turned up 1". The guides are welded to the uprights on 7-1/4" centers to accommodate No. 10 cans, with the rear of the guide 1-1/2" higher than the front to allow the cans to roll forward.

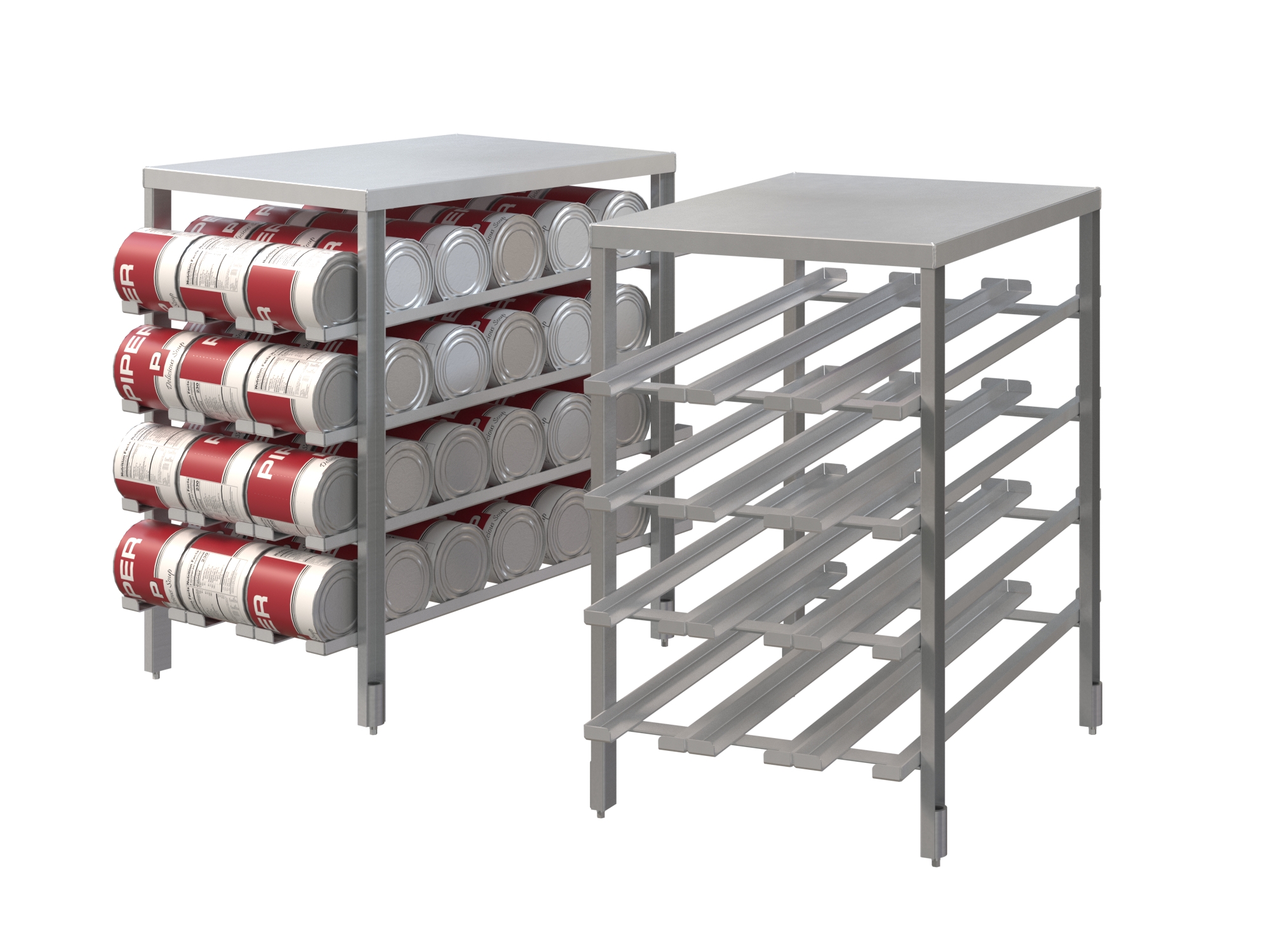

The unit is mobile, mounted on four 5" diameter, heavy duty, swivel casters. The top is 16 ga. stainless steel with all edges turned down 1-1/2", securely fastened to the frame. This unit is loaded from the rear.
The unit is stationary, mounted on four adjustable flanged feet welded to the uprights. The top is .060" thick aluminum with all edges turned down 1-1/2", welded securely to the uprights. This unit is loaded from the rear.
The unit is the same as Model CSR-210, except that it is constructed to accommodate No. 5 cans. The guides are set on 5-3/16" centers in lieu of 7-1/4". This unit is loaded from the rear.

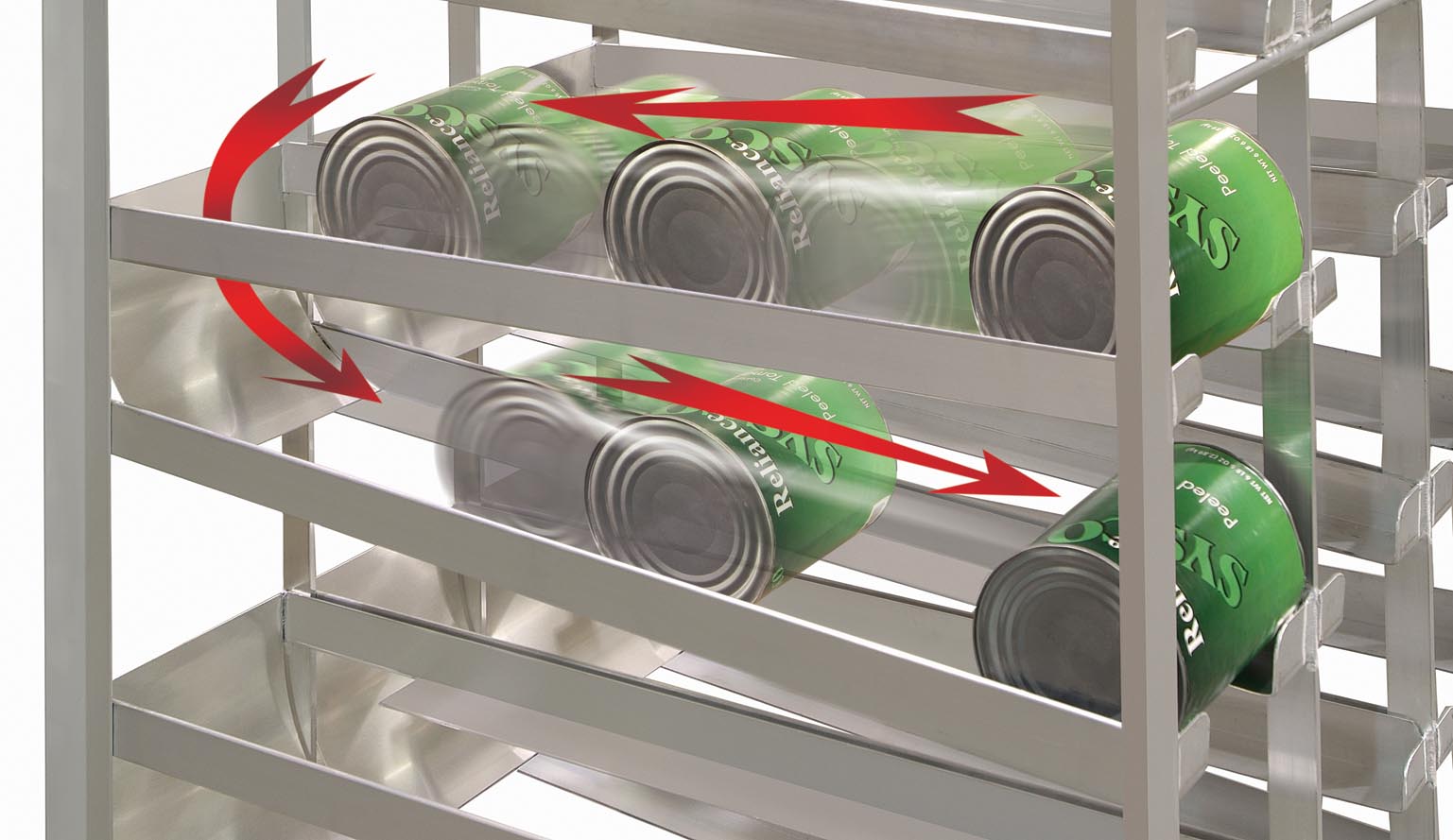

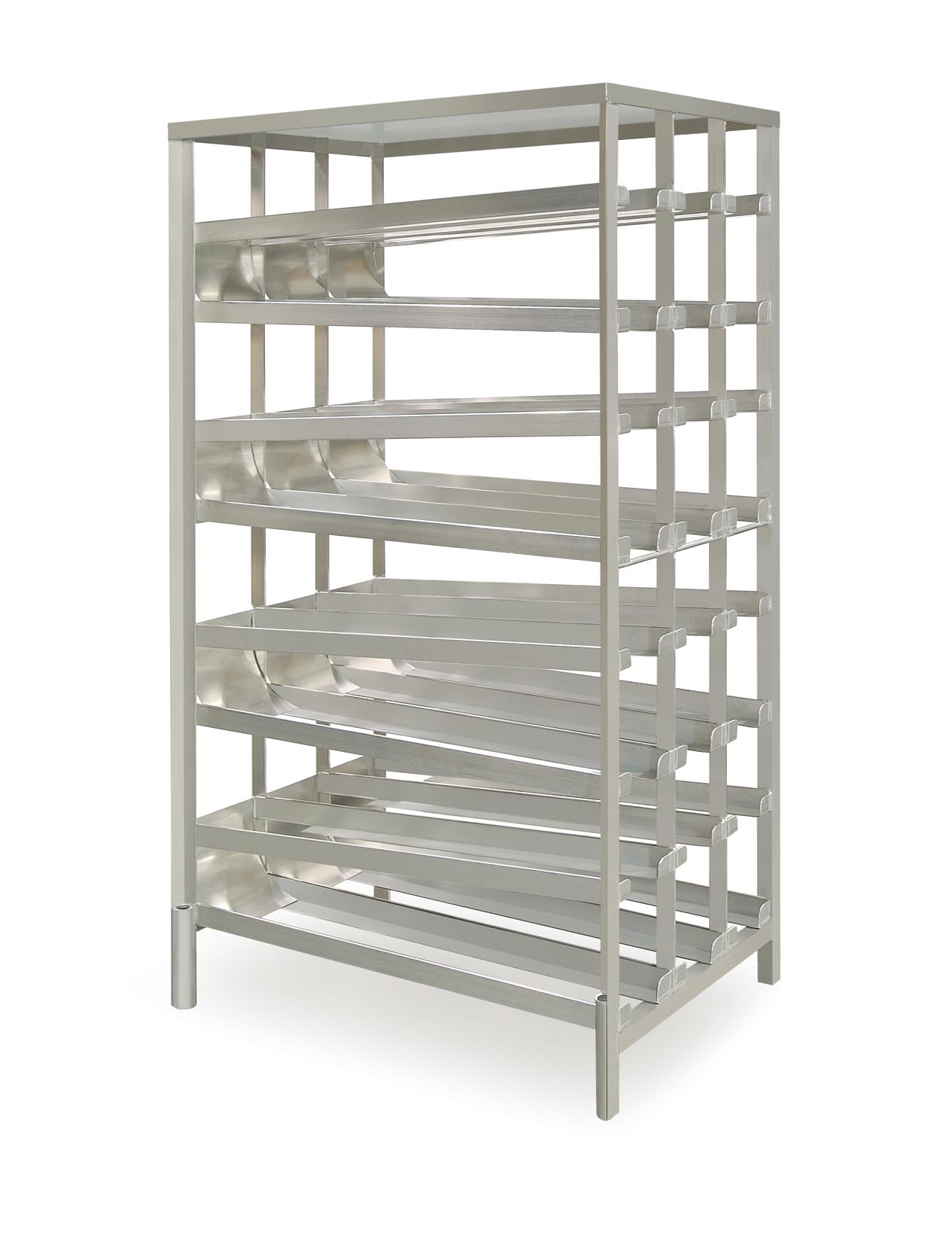

The unit is the same as Model CSR-210 except that it is front loading. The loading guides are inclined to the rear, where an aluminum deflector transfers the cans to unloading guides below which are inclined towards the front. Used where installation prevents rear loading.
Model # | Description |
---|---|
R | Rotating Bumper (Adds 5" to overall length and width) |
V | Vertical Bumpers (adds 1 |
WB | Two locking casters |
Y5 | Polyurethane 5 |
