File | Description | Size | |
---|---|---|---|
Rack Mini 2020.pdf | Racks Mini Catalog |
B |
Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
---|---|---|---|---|---|

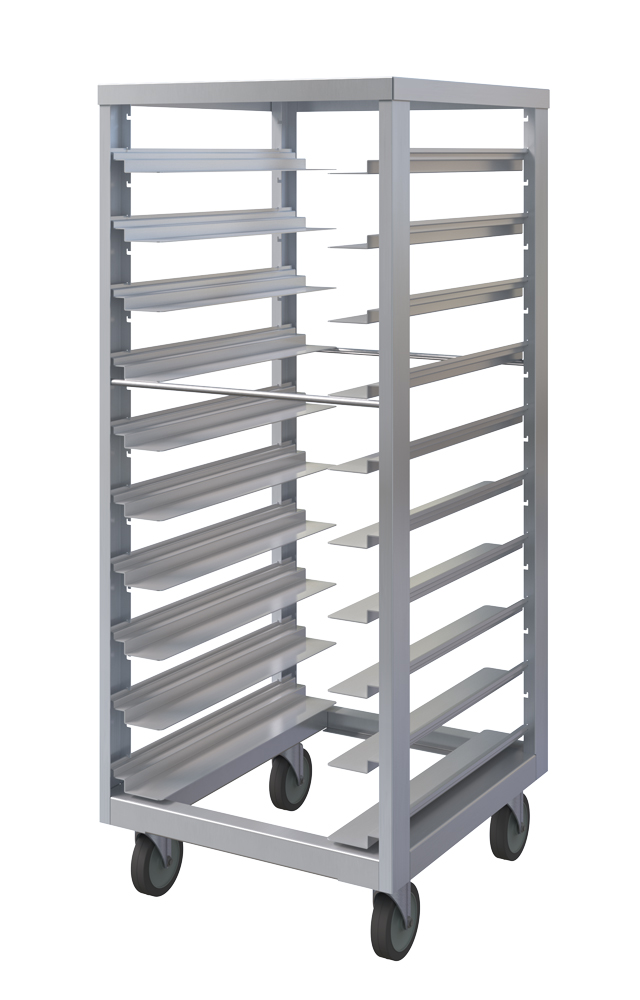

RIU58-10 | Universal Glide, Wide Angle Glide, 18" x 26" Sheet Pans or 12" x 20" Steam Table Pans | 23.75" | 58.5" | 80 | |

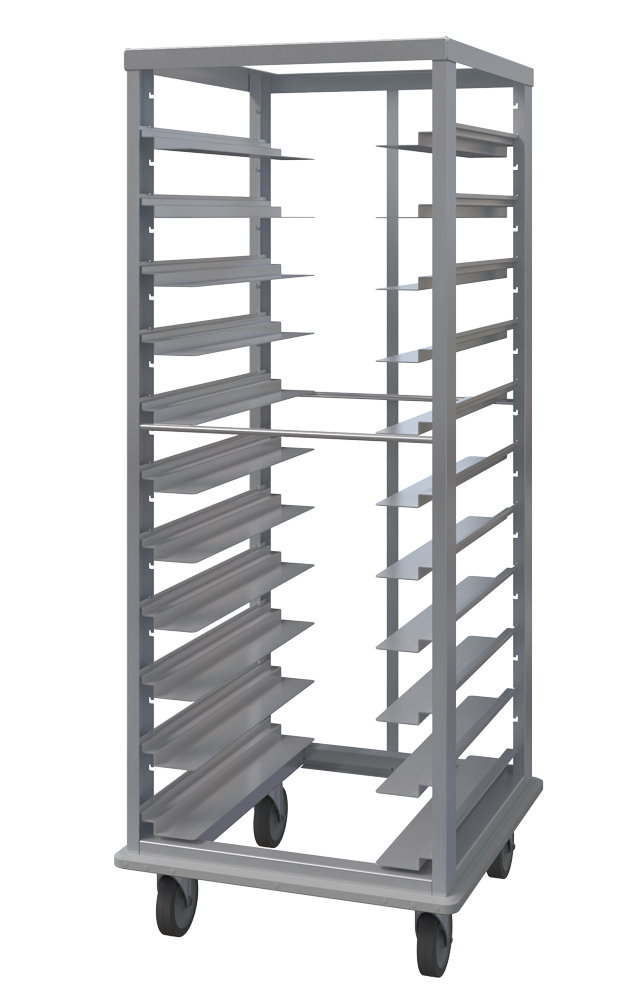

RIU64-11 | Universal Glide, Wide Angle Glide, 18" x 26" Sheet Pans or 12" x 20" Steam Table Pans | 23.75" | 64.25" | 85 | |

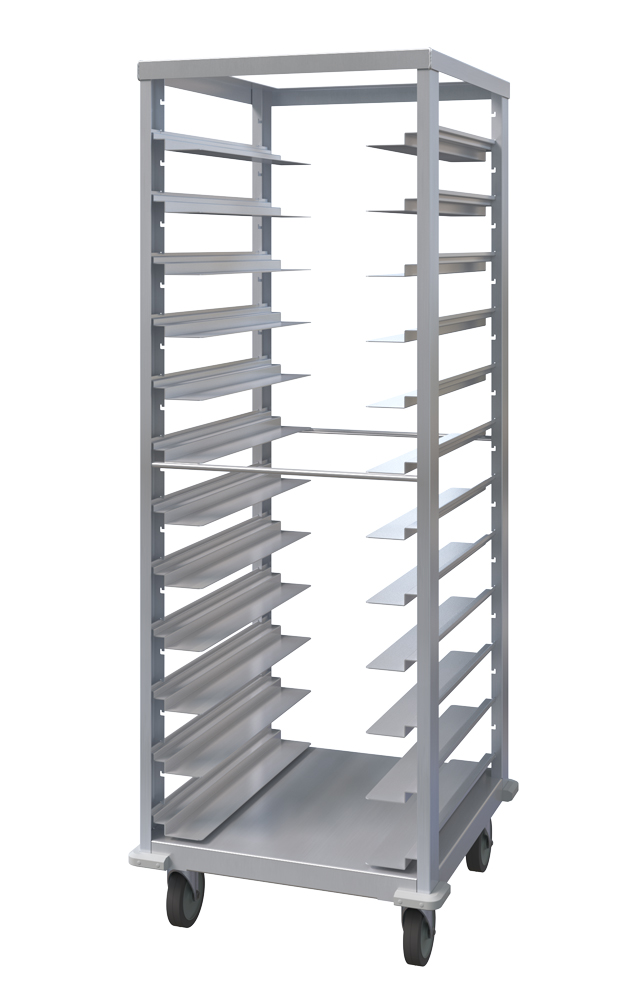

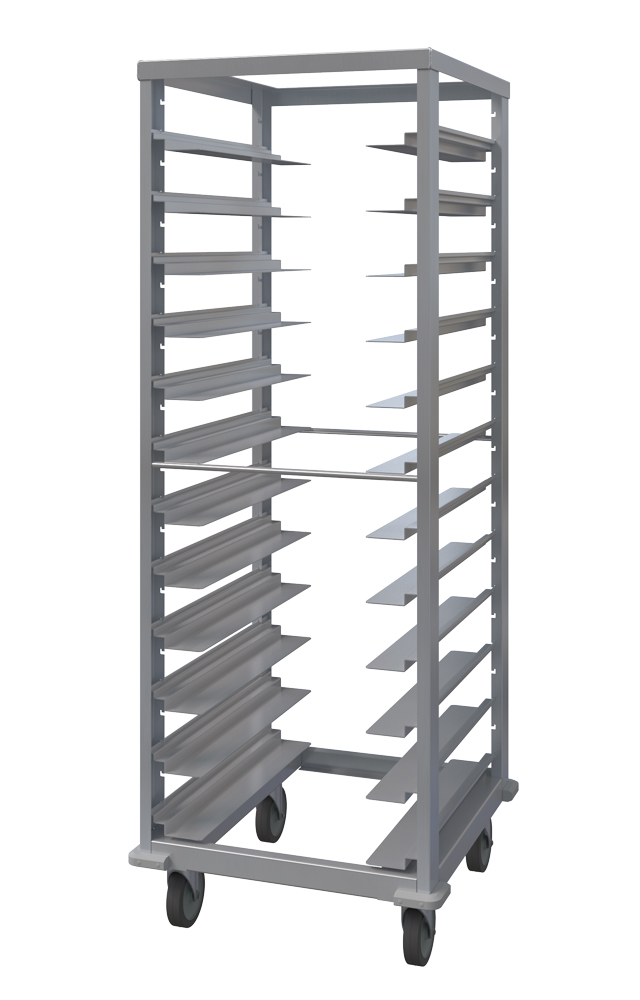

RIU69-12 | Universal Glide, Wide Angle Glide, 18" x 26" Sheet Pans or 12" x 20" Steam Table Pans | 23.75" | 69" | 100 |
Series RIU aluminum universal guide, open roll-in racks to accommodate 18" x 26" sheet pans or 12" x 20" food pans, for use in refrigerators and freezers.
The vertical uprights and the top and bottom cross bracing are 2" x 1" x 1/8" thick extruded aluminum channels, welded to form a rigid frame. Each vertical upright is fabricated with a series of obtuse angle slots, 1-5/8" on centers, to receive and contain the guides. Caster support channels are 1-7/8" x 4" x 1/8" thick extruded aluminum, fully welded to the vertical uprights and bottom cross supports.
The two level guides are 1/2" x 1" x 7/8" x 3-1/8" x .105" thick extruded aluminum, with all corners chamfered and deburred. They are easily removable and are securely held in position by a series of obtuse angle slots, 1-5/8” on center, which are punched in one wall of each channel upright.
All models have 1/2" diameter aluminum tie rods welded to the front and rear vertical uprights for extra rigidity.
The units are mounted on four 5" diameter, heavy duty, swivel casters.
NOTE: Before ordering Roll-In rack, be sure to verify the clear opening provided in the refrigerator or freezer being used with the Roll-In rack.
For lugs, trays or other size pans, apply to factory for dimensions and capacities
Model # | Description |
---|---|
5x2 | Heavy-duty Casters (set of 4)(requires SB option) |
B | Corner Bumper (adds 2” to overall length and width) Requires SB |
EMB | Personalized Embossment (12 letters per line - price per line) Per Line |
FL | Floor Lock (requires SB option) |
PB | Full Perimeter Bumper (adds 2” to overall length and width) |
PH | Push Handle |
PS | Pan Stop |
SB | Solid Bottom |
V | Vertical Bumpers (adds 1 |
WB | Two locking casters |
Y5 | Polyurethane 5 |
