File Downloads
| File | Description | Size | |
|---|---|---|---|
| Dispenser Mini.pdf | Dispenser Mini Catalog |
B | |
| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| ICE-1 | Cabinet Style - Mobile | 30.125" | 22" | 36.5" | 225 |
| ICE-2 | Cabinet Style - Mobile | 37.125" | 23" | 36.5" | 250 |
| ICE-3 | Cabinet Style - Mobile | 35.125" | 27" | 36.5" | 275 |
SPECIFICATIONS

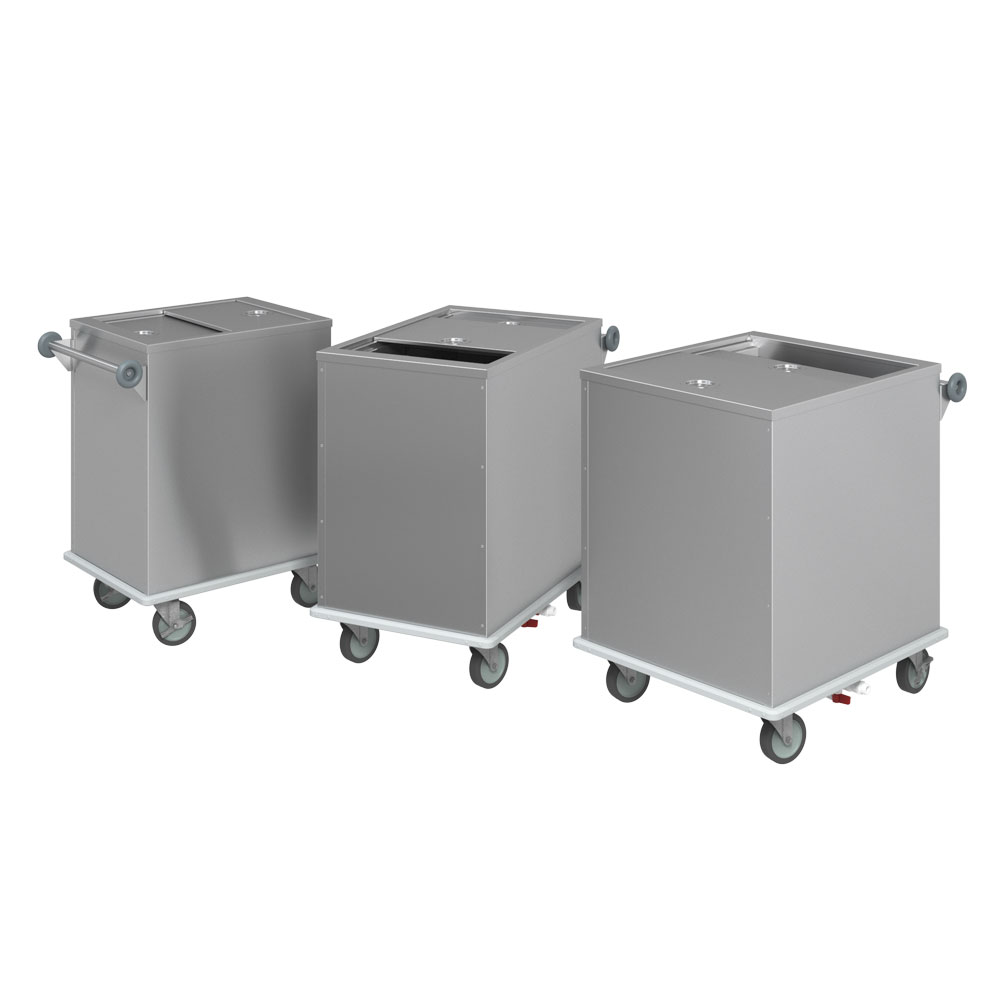

Model ICE cabinet style, mobile ice dispenser.
FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. Exterior sides are 20 ga. stainless steel and the top is 16 ga. stainless steel. Interior liner is 20ga. stainless steel with valve at one end. The entire unit is insulated. The unit is provided with insulated stainless steel sliding covers, a stainless steel tubular push handle with donut bumpers on each end, and a wrap-around, non-marking vinyl bumper.
DISPENSING MECHANISM: The self-leveling assembly consists of a 3" deep removable stainless steel ice pan mounted on a calibrated spring assembly. The pan is perforated for drainage. The entire assembly can be removed for cleaning.
CASTERS: The unit is mounted on four 5" diameter, swivel casters.
Model ICE-1 has one 15" x 20" ice pan.

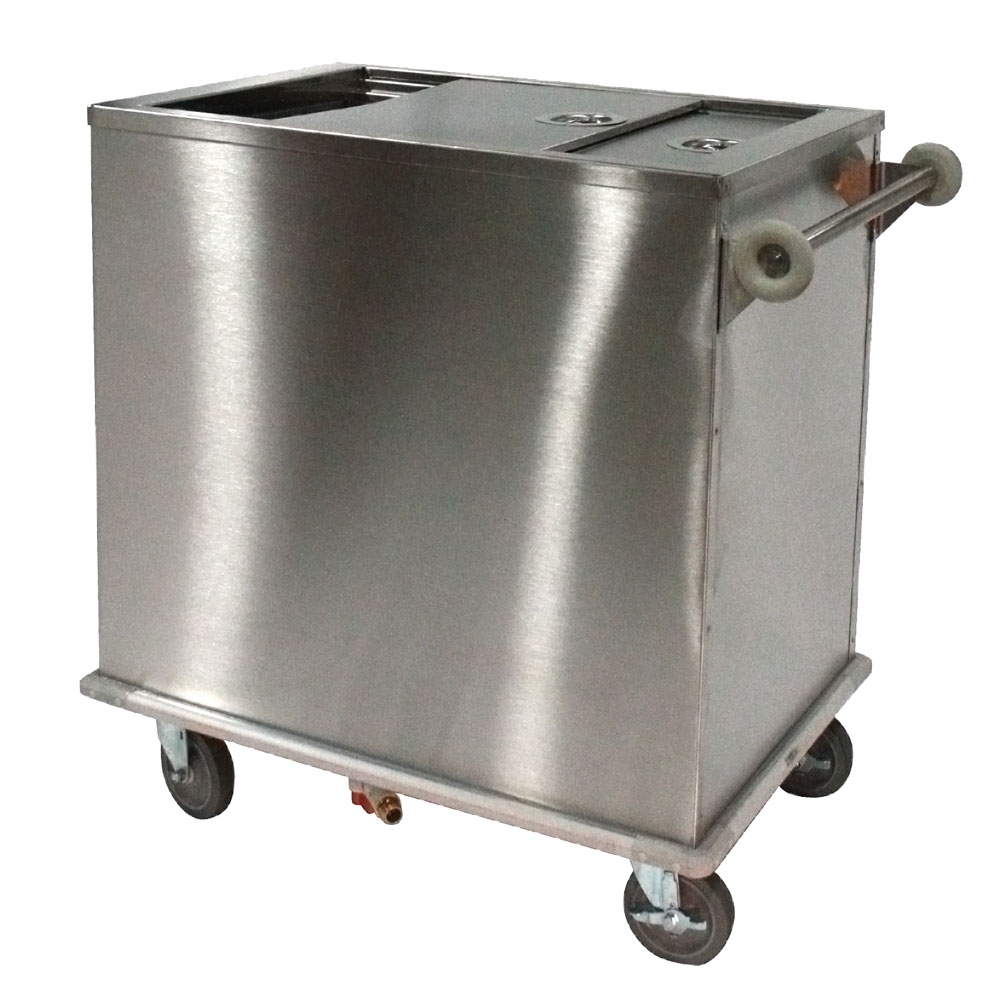

Model ICE-2 has two 13" x 16" ice pans with individual dispensing mechanisms and separated by a removable plexiglas partition.

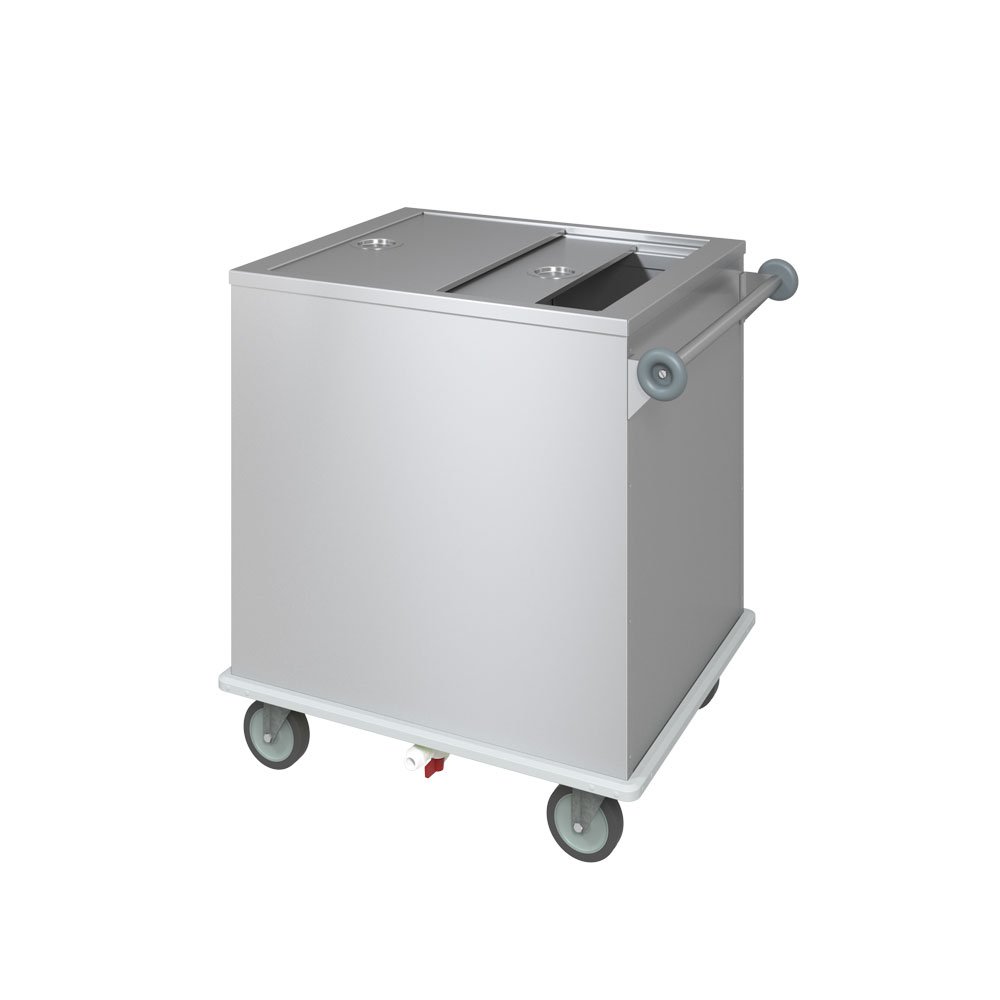

Model ICE-3 has two 12" x 20" ice pans with individual dispensing mechanisms and separated by a removable plexiglas partition.
AVAILABLE OPTIONS
| Model # | Description |
|---|---|
| V | Vertical Corner Bumpers |
| WB | Two locking casters |
| Y4 | Polyurethane 4 |
| Y5 | Polyurethane 5 |
