ANTIMICROBIAL PROTECTION

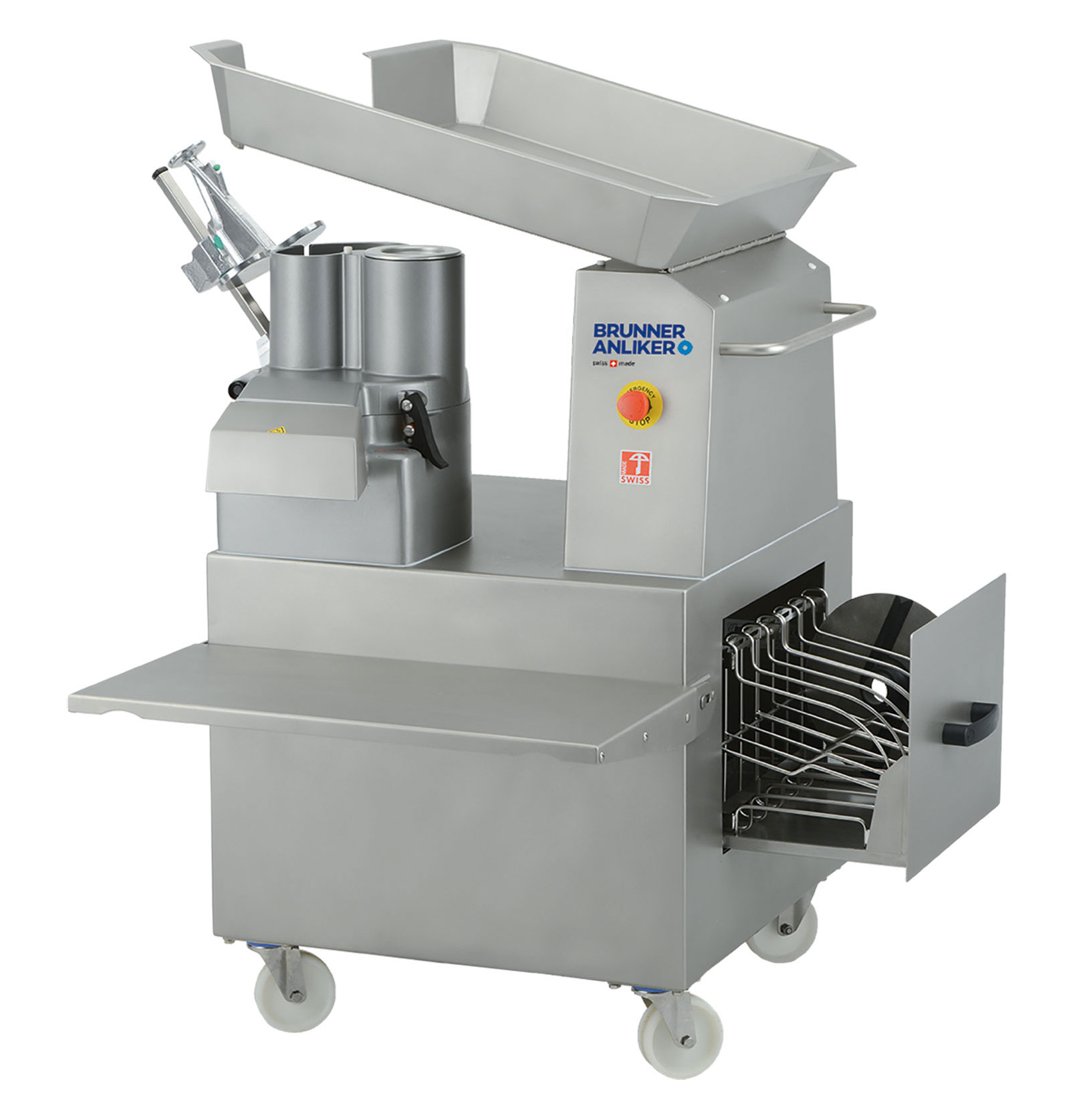

The kidney shaped food pusher is a glass fiber reinforced material with antimicrobial protection built in, which inhibits the growth of bacteria and provides superior sanitation. The Multicut-240 was designed to be a mobile machine. Mounted on casters, it can be moved effortlessly from on e location to another. Thanks to the integrated stainless steel disc storage, the cutting dics always remain within easy reach. In addition, the "higher volume" hopper feed allows for more processing per hour.
Standard Features
- Kidney shaped material pusher is made from antimicrobial glass fiber compound
- Powerful 1 HP gear-driven motor
- Optimum plate speed of 280 RPMs
- Thermal overload protection
- Polished foodgrade cast aluminum hopper head and sealed upper housing
- Stainless steel body and base
- Built in antimicrobial protection
- Double safety interlock - hopper head/food pusher
- Ergonomic 45° food hopper incline
- Removable hopper head and food pusher (no tools required)
- Discs are rigid cast foodgrade aluminum
- Stainless steel knives are hardened, ground, leathered and hand-polished
- 42 different cutting discs are available
Capacity
- Processes up to 1300 lbs. per hour. Ideal for 1,800+ meals.
Motor
- 1 HP, 115V/60HZ/1 Phase, 14.5 amps, automatic reset thermal overload protection.
Unit Comparisons
|
GSM 4 |
GSM 5 Star |
XL, XL Star, & MultiCut-240 |
| HP |
1/2 |
1/2 |
1 |
| RPMs |
340 |
340 |
280 |
| Upper Housing |
Cast Aluminum |
Stainless Steel |
Cast Aluminum |
| Blades Available |
47 |
52 |
42,44,42 |
| Antimicrobial Protection Pusher |
|
X |
X |
| Antimicrobial Protection Blades |
X |
X |
|
On/Off Latch (Interlocks)
- The hopper latch serves as the on/off switch and interlock for the hopper head. The unit will not operate with the hopper head open or unlatched.
Gear Drive
- Sealed spur gear transmission with permanent grease lubrication. Output 280 RPMs.
Design
- Ergonomic 45° incline for convenient feeding, cutting and ejection of food. Separate food hopper permits continuous cutting of long products. The food pusher enables even pressure to be applied when cutting food. The hopper head, food pusher and cutting discs are easily removable, without the use of tools, for quick cleaning.
Construction
- The sealed upper housing, removable hinged hopper head and food hoppers are made of polished cast aluminum. The body and base are constructed of #304 stainless steel.

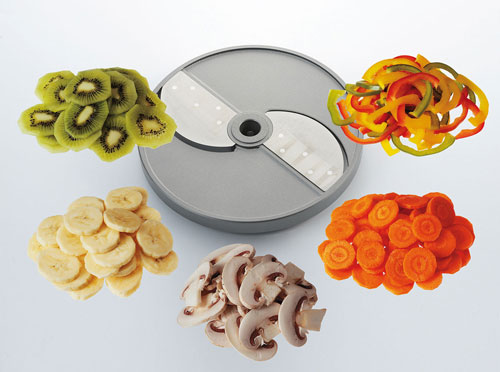

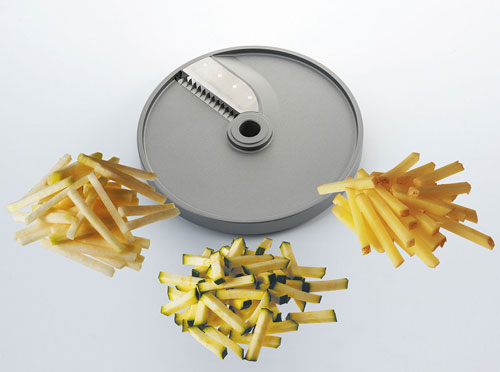

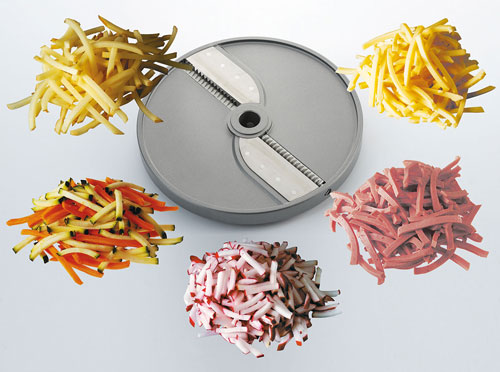

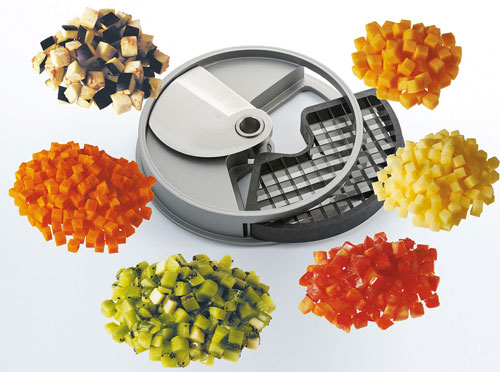

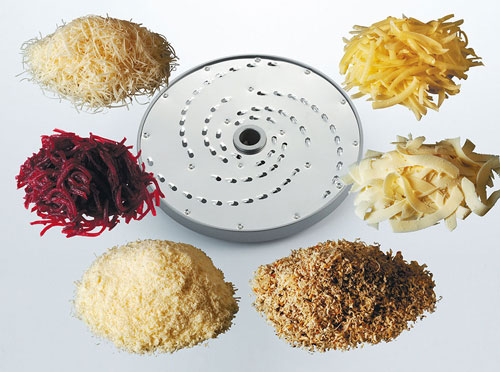

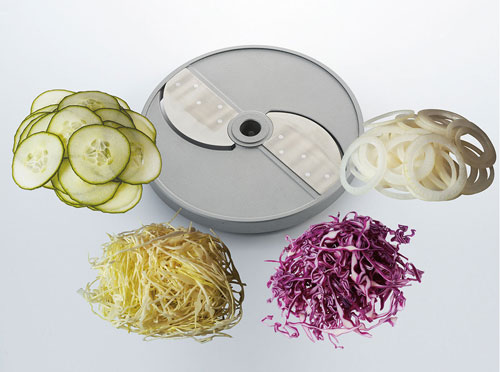

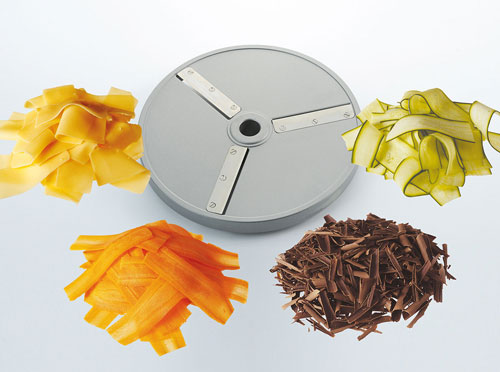

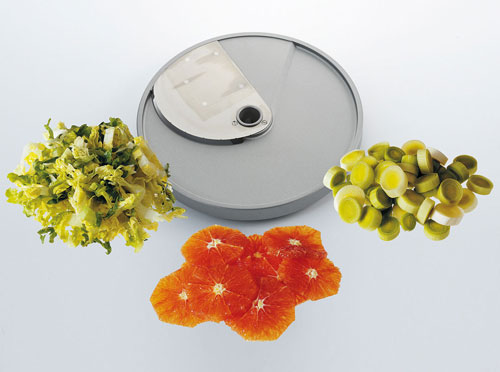

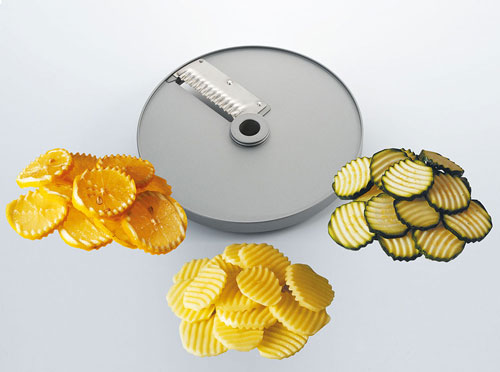

Cutting Discs
- There are 42 cutting discs available. The discs are rigid foodgrade cast aluminum. The knives are hardened, ground, leathered and hand-polished to a razor sharp edge for precision cutting and long life.
Warranty
Two years parts and labor.
