Spec
U-9
U-9
Load
Underbar Sinks

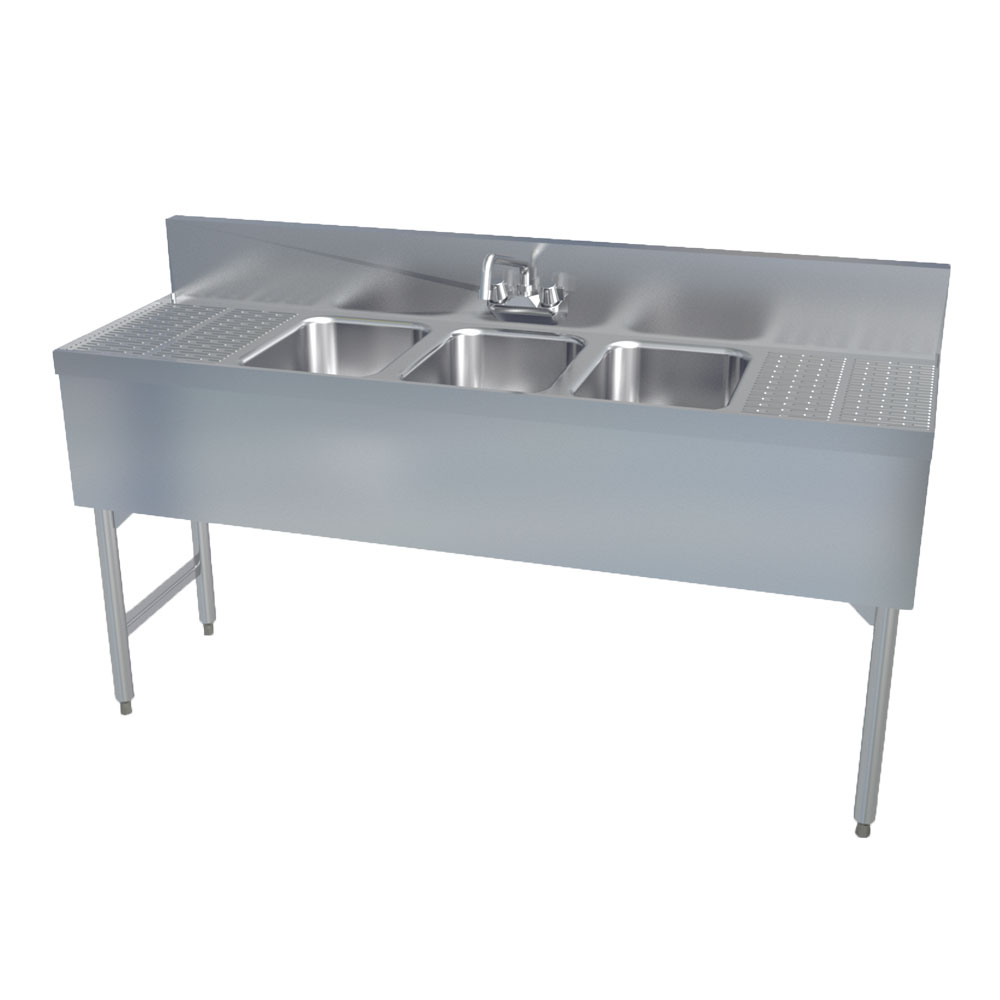

SD53C
| Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
|---|---|---|---|---|---|
| SD31 | One Compartment | 19" | 31" | 36" | |
| SK31 | One Compartment | 19" | 31" | 36" | |
| SK22 | Two Compartment | 19" | 22" | 36" | |
| SD32 | Two Compartment | 19" | 32" | 36" | |
| SK32 | Two Compartment | 19" | 32" | 36" | |
| SD42 | Two Compartment | 19" | 42" | 36" | |
| SK42 | Two Compartment | 19" | 42" | 36" | |
| SD33 | Three Compartment | 19" | 33" | 36" | |
| SK33 | Three Compartment | 19" | 33" | 36" | |
| SD43 | Three Compartment | 19" | 43" | 36" | |
| SK43 | Three Compartment | 19" | 43" | 36" | |
| SD53 | Three Compartment | 19" | 53" | 36" | |
| SK53 | Three Compartment | 19" | 53" | 36" | |
| SD63 | Three Compartment | 19" | 63" | 36" | |
| SK63 | Three Compartment | 19" | 63" | 36" | |
| SD73 | Three Compartment | 19" | 73" | 36" | |
| SK73 | Three Compartment | 19" | 73" | 36" | |
| SD44 | Four Compartment | 19" | 44" | 36" | |
| SK44 | Four Compartment | 19" | 44" | 36" | |
| SD64 | Four Compartment | 19" | 64" | 36" | |
| SK64 | Four Compartment | 19" | 64" | 36" | |
| SD74 | Four Compartment | 19" | 74" | 36" | |
| SK74 | Four Compartment | 19" | 74" | 36" | |
| SD22 | Two Compartment | 19" | 22" | 36" |
STANDARD FEATURES
- 304 Stainless Steel, Welded and Polished Top Assembly, Front Apron and Ends
- 20-Gauge Polished, Deep-Drawn 304 Stainless Steel Tanks
- Galvanized Steel Understructure
- 6” Tall Backsplash with 1 3/4” Turnback to Allow for Plumbing Clearance
- Deep-Drawn Sink Bowls 10”x14”x9 3/4”
- All Sinks Include Compatable Low Lead Compliant Faucet
- 1” Diameter Faucet Holes
- Legs: Steel Tube and Welded Cross-Brace Construction, with Corrosion Resistant Hammertone Paint and High-Impact Plastic Adjustable Feet
- Stainless Steel Drain with 1 1/2” Standard Male Pipe Thread (1 1/2” I.P.S. - Std. Thread), Gasket and Nut Field Installed
- Chrome Plated Overflow Tubes with Rubber Grommet for Each Sink
- Backsplash Mounted Faucets with 6” Centers (1 Faucet with 3 Tanks or Fewer Models; 2 Faucets for 4 Tank Models)
- Constructed to Meet NSF Specifications
