Model # | Description | Length | Width | Height | Ship Wt.(lbs) |
---|---|---|---|---|---|
716-1-A6 | One shelf weight of 60 lbs. | 18" | 21.375" | 55" | 60 |
715-2 | Two shelves | 36" | 21.375" | 36" | 65 |
715-3 | Three shelves | 36" | 21.375" | 36" | 75 |
715-4 | Four shelves | 36" | 21.375" | 45" | 100 |
715-5 | Five shelves | 36" | 21.375" | 45" | 120 |
Shown with optional silverware cylinders and rotating bumpers.

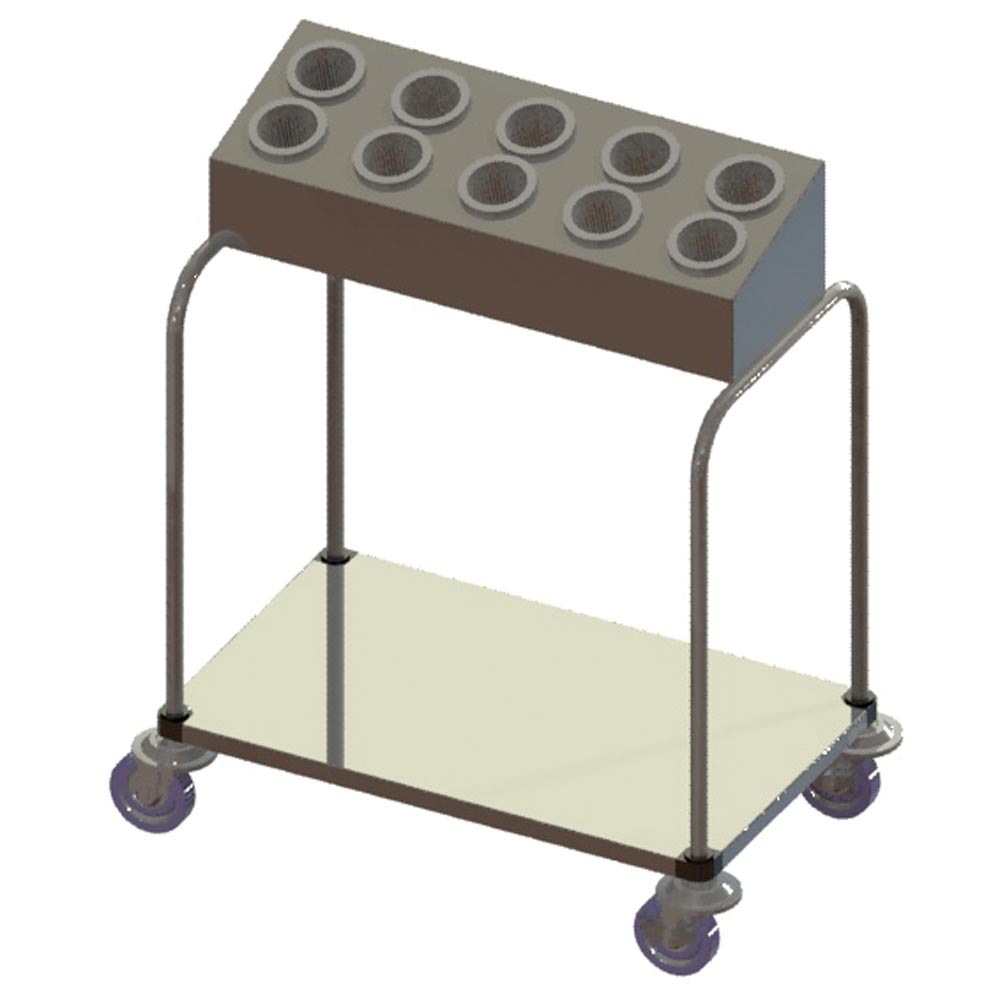

Model 716-1-A6 tray and silverware cart for silverware in cylinders.
FRAME: The frame is constructed of 1" O.D. 16ga. stainless steel tubing with the A6 acting as an integral cross braces welded across the top for rigidity.
SHELVES: Each shelf is press formed from a single sheet of 18 ga. stainless steel. It is flanged down 1-5/16" on all four sides and formed back at a 30º angle for rigidity. Each inside corner is fitted with an ABS black plastic bracket and sleeve to accommodate an upright. The bottom shelf on all models is set 8" above the floor.
SILVERWARE DISPENSER: The dispenser is constructed of 18 ga. stainless steel and is securely welded to the top of the cart. The top is canted and has six round openings to accommodate plastic or stainless steel silverware cylinders.
CASTERS: The unit is mounted on four 4" diameter heavy duty, swivel casters.
CAPACITY: Approximately 75-150, 14" x 18" trays and 210 to 240 pieces of silverware.
OVERALL DIMENSIONS: 18" long, 21 3/8" wide, 45" high.
Shipping weight: 60
Model 715 series multi-purpose carts.
FRAME: The frame is constructed of 1" O.D. 16 ga. stainless steel tubing formed to serve as push handles at both ends.
SHELVES: Each shelf is press formed from a single sheet of 18 ga. stainless steel. It is flanged down 1-5/16" on all four sides and formed back at a 30º angle for rigidity. Each inside corner is fitted with an ABS black plastic bracket and sleeve to accommodate an upright. The bottom shelf on all models is set 8" above the floor.
CASTERS: The unit is mounted on four 4" diameter heavy duty, swivel casters.
MODELS 715-2 through 715-5: All carts are the same size and construction. The model number suffix indicates number of shelves.
CAPACITY: Two stacks of trays or dish boxes, 15-1/4'' x 20-1/2" maximum size - or one stack of racks, 20" x 20" maximum size on each shelf; or suitable combination. Add 3" to overall length and width for rotating bumpers.
Model # | Description |
---|---|
011-3842 | Silverware Cylinder, stainless steel Each |
159-2701 | Silverware Cylinder, plastic Each |
341-3483 | Napkin Dispenser, folded napkin 3.5"x7" |
I | Silverware, identity plates (knives, forks, teaspoons) Each for Carts |
R | Rotating Bumper (Adds 5" to overall length and width) |
WB | Two locking casters |
Y4 | Polyurethane 4 |
Y5 | Polyurethane 5 |
